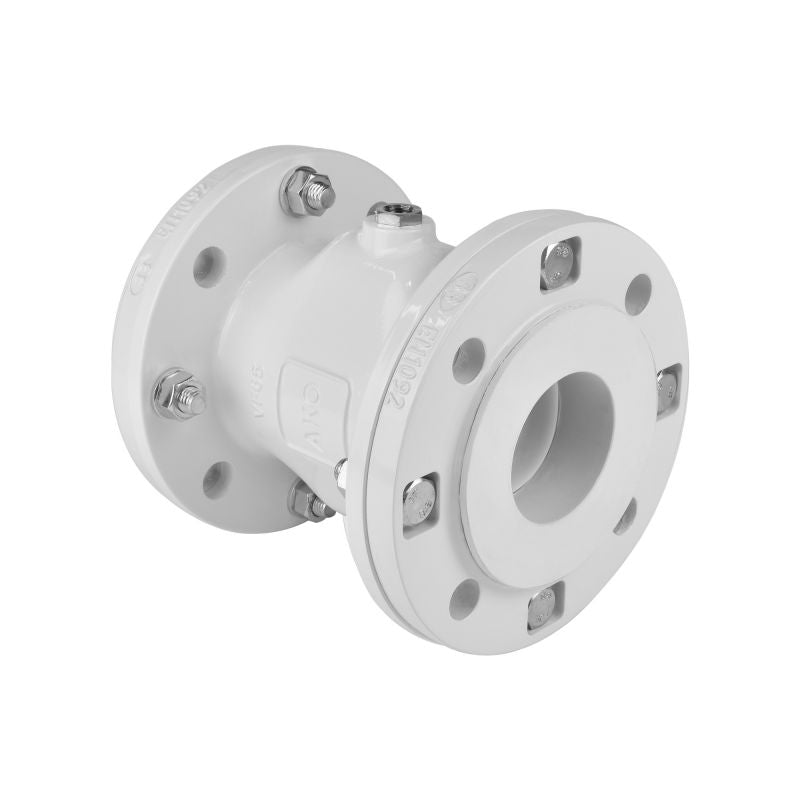

VF Series Pinch Valve 2-1/2" - VF065.07LW.337LW.30LA
Series VF air operated pinch valve (part number: VF065.07LW.337LW.30LA) with a nominal diameter of 2-1/2". Equipped with a NBR (Nitrile), food grade, pale sleeve, Flange DIN EN 1092-1 PN10/16 connections made of Aluminum with medium contacted NBR (Nitrile) food white rubber flange sleeve and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 65mm, 2-1/2" |
| Max. Operating Pressure | 80 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 35 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | Aluminum |
| Connection Material | Aluminum with medium contacted NBR (Nitrile) food white rubber flange sleeve |
| Connection Type | Flange DIN EN 1092-1 PN10/16 |
| Sleeve Quality | NBR (Nitrile), food grade, pale |
| Control Air Connection | Internal thread G 1/4" |
