VF Series Pinch Valve 4" - VF100.04LW/03H.31.30GLA

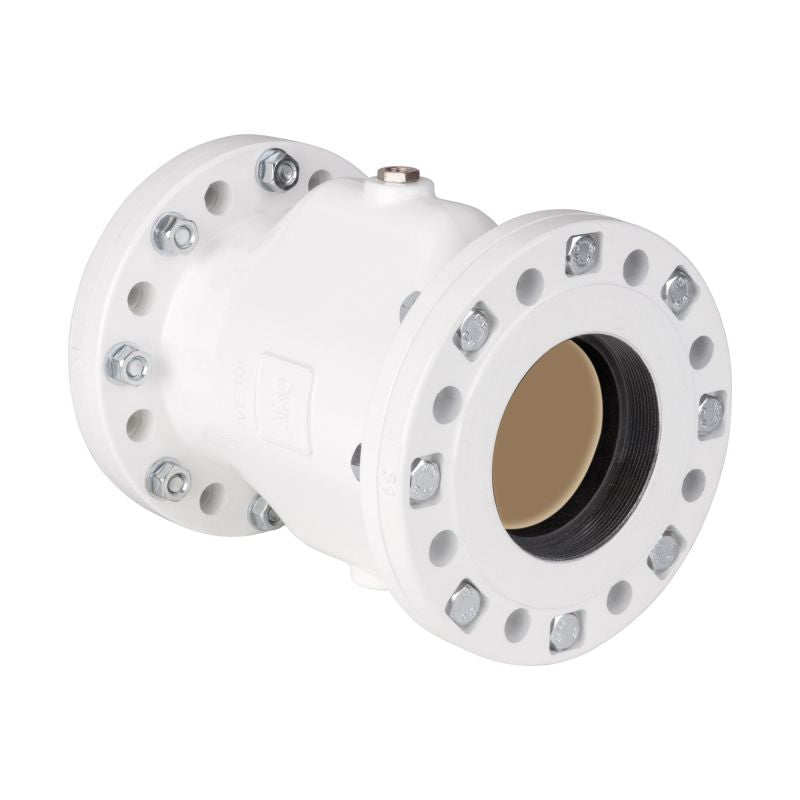

Series VF air operated pinch valve (part number: VF100.04LW/03H.31.30GLA) with a nominal diameter of 4". Equipped with a EPDM, pale sleeve, Internal thread type "G" (DIN ISO 228-1) connections made of Aluminum with medium contacted steel bushing and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 100mm, 4" |
| Max. Operating Pressure | 80 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 35 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 212° F |
| Body Material | Aluminum |
| Connection Material | Aluminum with medium contacted steel bushing |
| Connection Type | Internal thread type "G" (DIN ISO 228-1) |
| Sleeve Quality | EPDM, pale |
| Control Air Connection | Internal thread G 1/4" |
