VF Series Pinch Valve 4" - VF100.07LW.31.30GLA

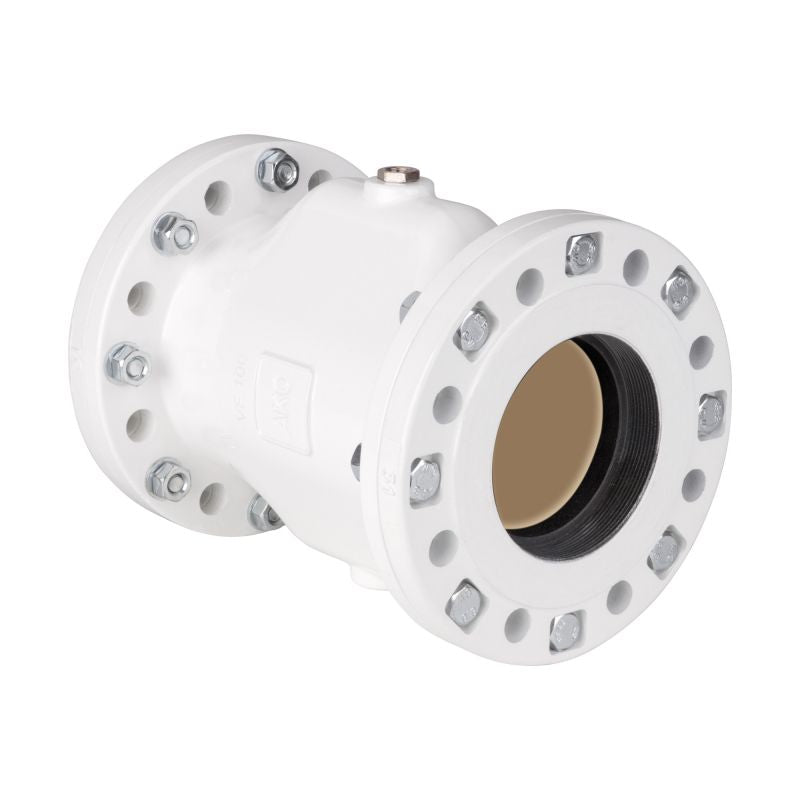

Series VF air operated pinch valve (part number: VF100.07LW.31.30GLA) with a nominal diameter of 4". Equipped with a NBR (Nitrile), food grade, pale sleeve, Internal thread type "G" (DIN ISO 228-1) connections made of Aluminum with medium contacted steel bushing and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 100mm, 4" |
| Max. Operating Pressure | 90 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 30 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | Aluminum |
| Connection Material | Aluminum with medium contacted steel bushing |
| Connection Type | Internal thread type "G" (DIN ISO 228-1) |
| Sleeve Quality | NBR (Nitrile), food grade, pale |
| Control Air Connection | Internal thread G 1/4" |
