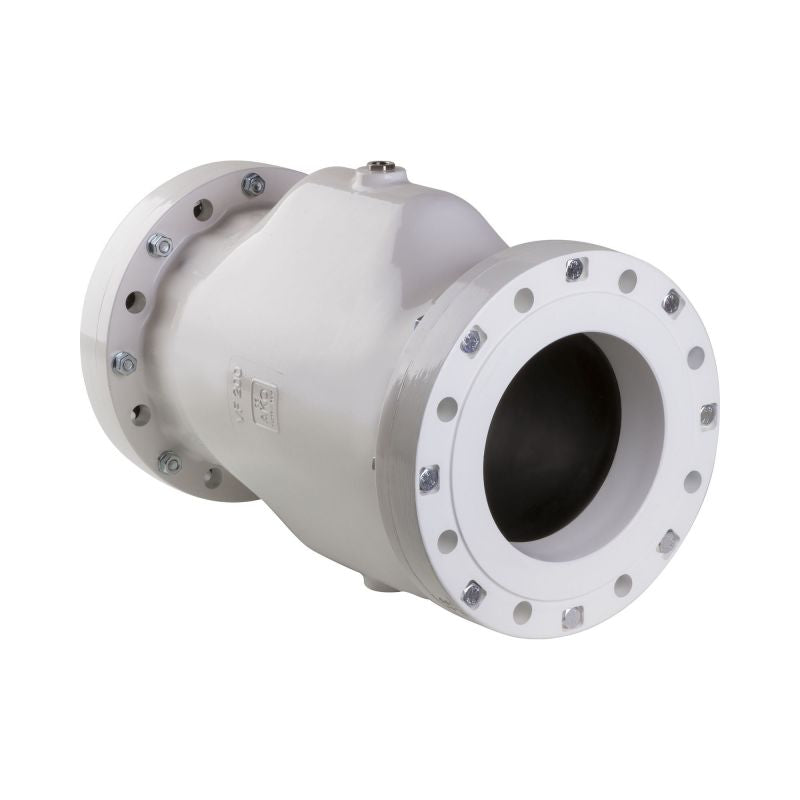

VF Series Pinch Valve 8" - VF200.03X.31.30LA
Skip to product information
VF Series Pinch Valve 8" - VF200.03X.31.30LA
Series VF air operated pinch valve (part number: VF200.03X.31.30LA) with a nominal diameter of 8". Equipped with a NR (Natural Rubber), anti-abrasive, high resilience sleeve, Flange DIN EN 1092-1 PN10 connections made of Aluminum with medium contacted steel bushing and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 200mm, 8" |
| Max. Operating Pressure | 60 psi |
| Max. Control Pressure | 90 psi |
| Min. Differential Pressure | 30 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | Aluminum |
| Connection Material | Aluminum with medium contacted steel bushing |
| Connection Type | Flange DIN EN 1092-1 PN10 |
| Sleeve Quality | NR (Natural Rubber), anti-abrasive, high resilience |
| Control Air Connection | IInternal thread G 3/8" |
