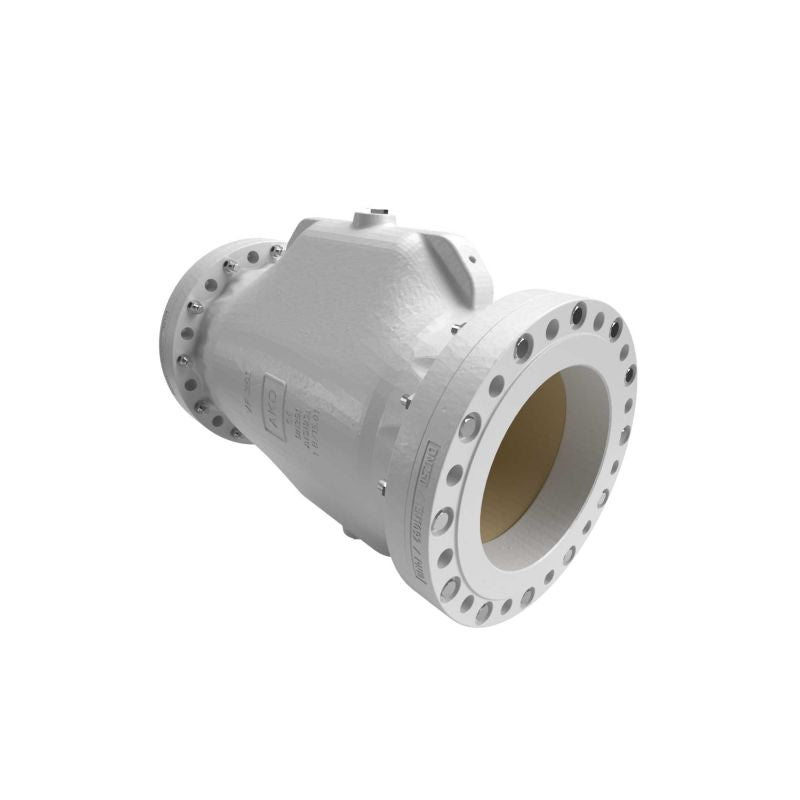

VF Series Pinch Valve 10" - VF250.04LW/03H.33.30LAD
Series VF air operated pinch valve (part number: VF250.04LW/03H.33.30LAD) with a nominal diameter of 10". Equipped with a EPDM, pale sleeve, Flange DIN EN 1092-1 PN10 connections made of Aluminum and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 250mm, 10" |
| Max. Operating Pressure | 35 psi |
| Max. Control Pressure | 75 psi |
| Min. Differential Pressure | 35 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 212° F |
| Body Material | Aluminum |
| Connection Material | Aluminum |
| Connection Type | Flange DIN EN 1092-1 PN10 |
| Sleeve Quality | EPDM, pale |
| Control Air Connection | Internal thread 2 x G 1/2" |
