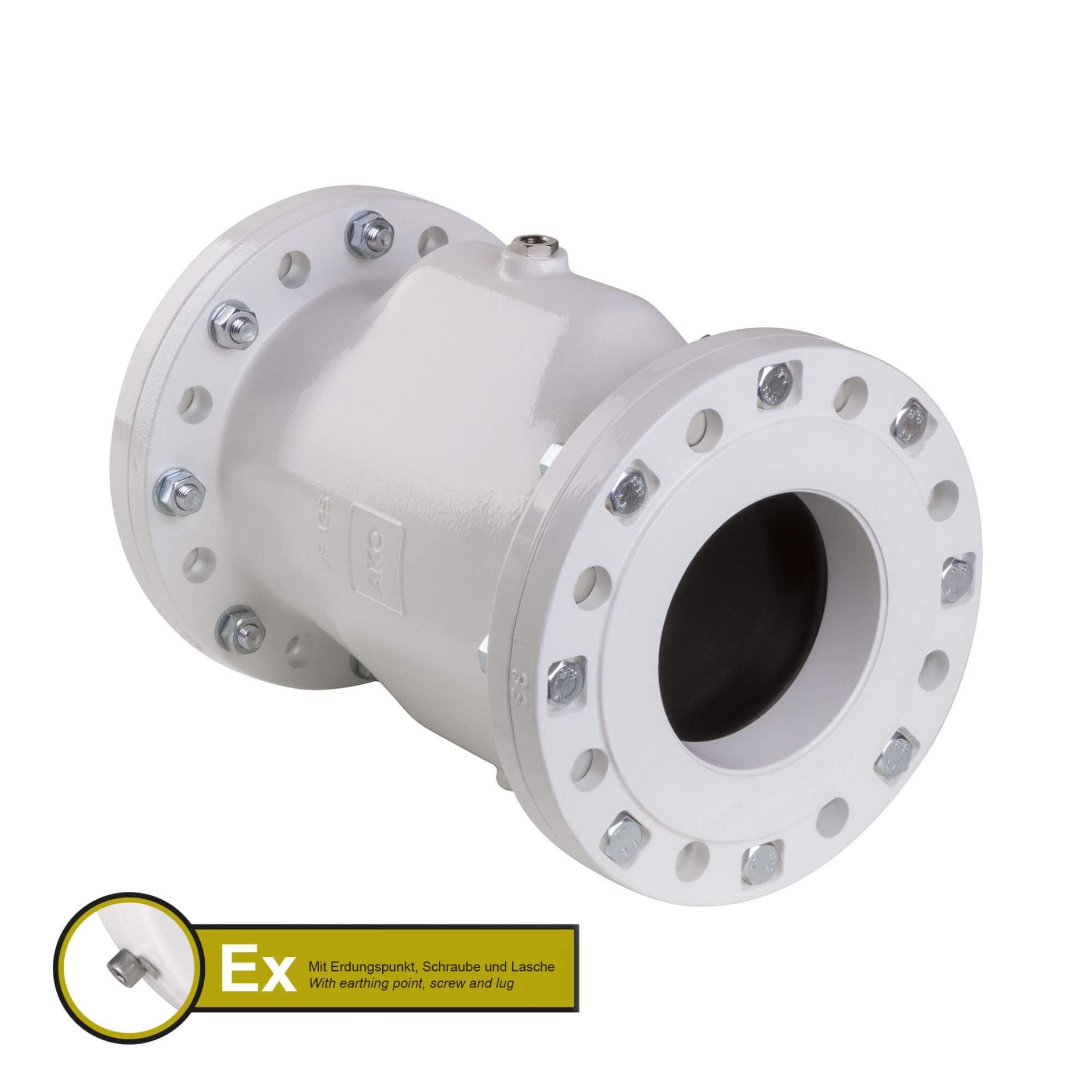

VFX Series Pinch Valve 5" - VFX125.03SFLF.33.30LA
Series VFX air operated pinch valve (part number: VFX125.03SFLF.33.30LA) with a nominal diameter of 5". Equipped with a NR (Natural Rubber), electr. conductive, silicone-free manufactured sleeve, Flange DIN EN 1092-1 PN10/16 connections made of Aluminum and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 125mm, 5" |
| Max. Operating Pressure | 90 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 30 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | Aluminum |
| Connection Material | Aluminum |
| Connection Type | Flange DIN EN 1092-1 PN10/16 |
| Sleeve Quality | NR (Natural Rubber), electr. conductive, silicone-free manufactured |
| Control Air Connection | Internal thread G 1/4" |
