VMC Series Pinch Valve 6" - VMC150.03X.50R.50

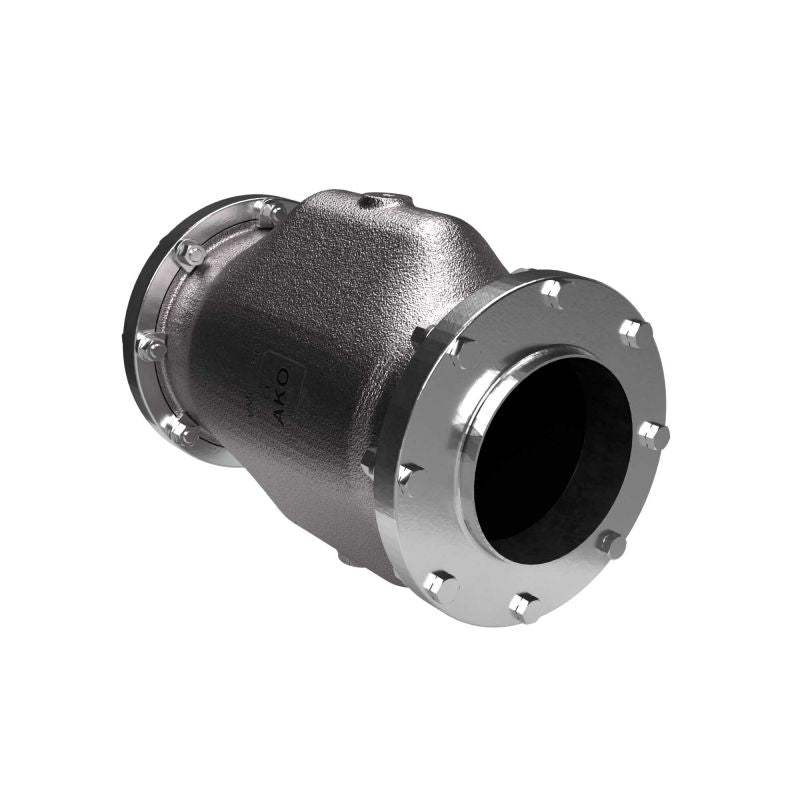

Series VMC air operated pinch valve (part number: VMC150.03X.50R.50) with a nominal diameter of 6". Equipped with a NR (Natural Rubber), anti-abrasive, high resilience sleeve, Weld-on end DIN EN 10357 series A connections made of Stainless steel 1.4404 (AISI 316L) and a Stainless Steel 1.4408 (AISI 316) body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 150mm, 6" |
| Max. Operating Pressure | 90 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 30 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | Stainless Steel 1.4408 (AISI 316) |
| Connection Material | Stainless steel 1.4404 (AISI 316L) |
| Connection Type | Weld-on end DIN EN 10357 series A |
| Sleeve Quality | NR (Natural Rubber), anti-abrasive, high resilience |
| Control Air Connection | Internal thread G 1/4" |
