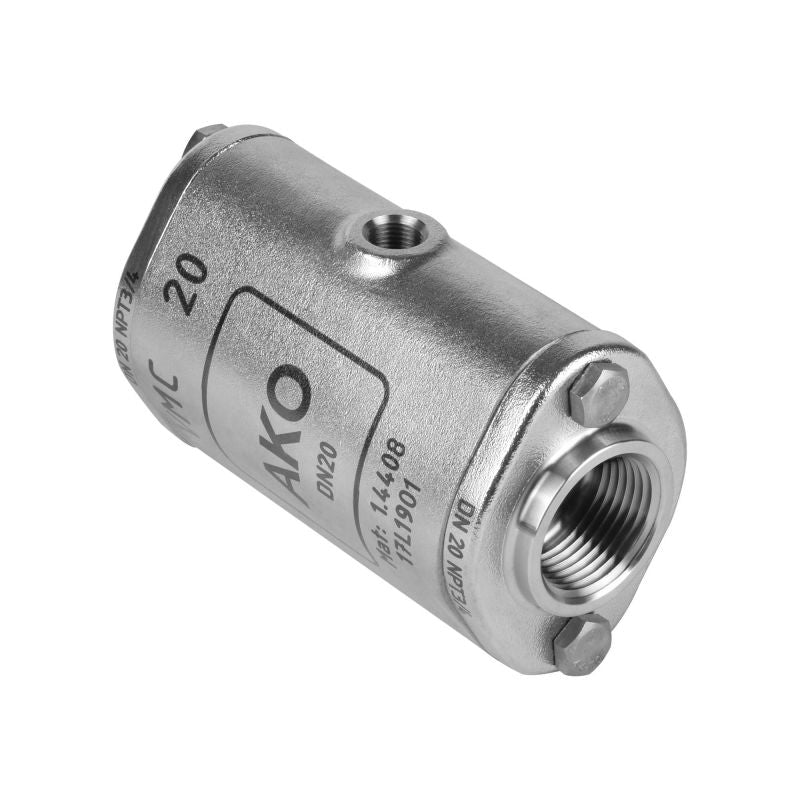

VMC Series Pinch Valve 3/4" - VMC20.03XKSF.50N.50
Series VMC air operated pinch valve (part number: VMC20.03XKSF.50N.50) with a nominal diameter of 3/4". Equipped with a NR (Natural Rubber), anti-abrassive, silicone-free manufactured sleeve, Internal thread ASME B1.20.1 "NPT" connections made of Stainless steel 1.4404 (AISI 316L) and a Stainless Steel 1.4408 (AISI 316) body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 20mm, 3/4" |
| Max. Operating Pressure | 80 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 35 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | Stainless Steel 1.4408 (AISI 316) |
| Connection Material | Stainless steel 1.4404 (AISI 316L) |
| Connection Type | Internal thread ASME B1.20.1 "NPT" |
| Sleeve Quality | NR (Natural Rubber), anti-abrassive, silicone-free manufactured |
| Control Air Connection | Internal thread G 1/8" |
