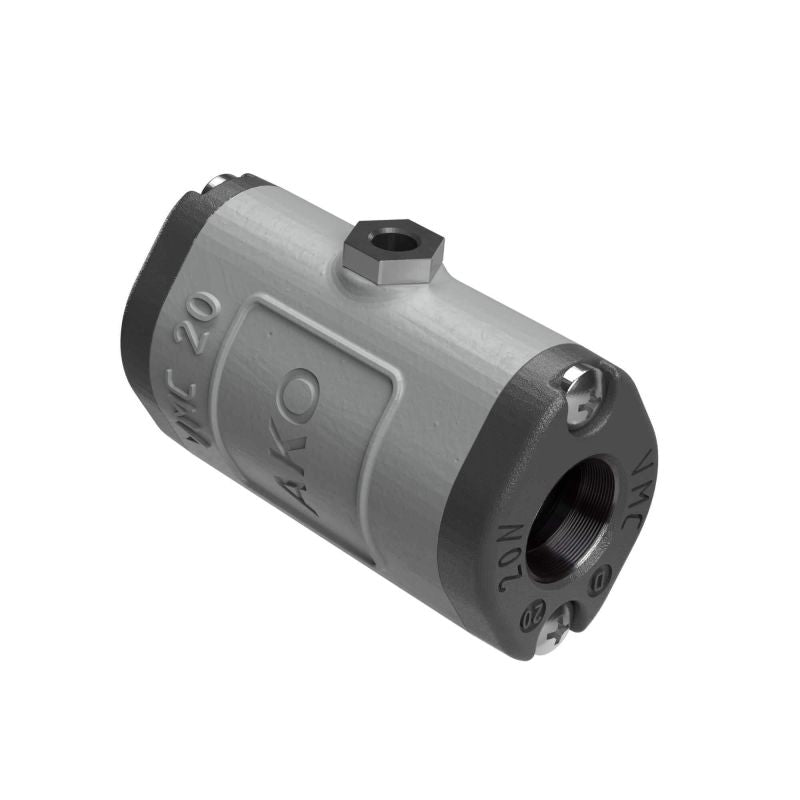

VMC Series Pinch Valve 3/4" - VMC20.04LWK.36N.30LX
Series VMC air operated pinch valve (part number: VMC20.04LWK.36N.30LX) with a nominal diameter of 3/4". Equipped with a EPDM, pale sleeve, Internal thread ASME B1.20.1 "NPT" connections made of Aluminum and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 20mm, 3/4" |
| Max. Operating Pressure | 80 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 35 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 194° F |
| Body Material | Aluminum |
| Connection Material | Aluminum |
| Connection Type | Internal thread ASME B1.20.1 "NPT" |
| Sleeve Quality | EPDM, pale |
| Control Air Connection | Internal thread G 1/8" |
