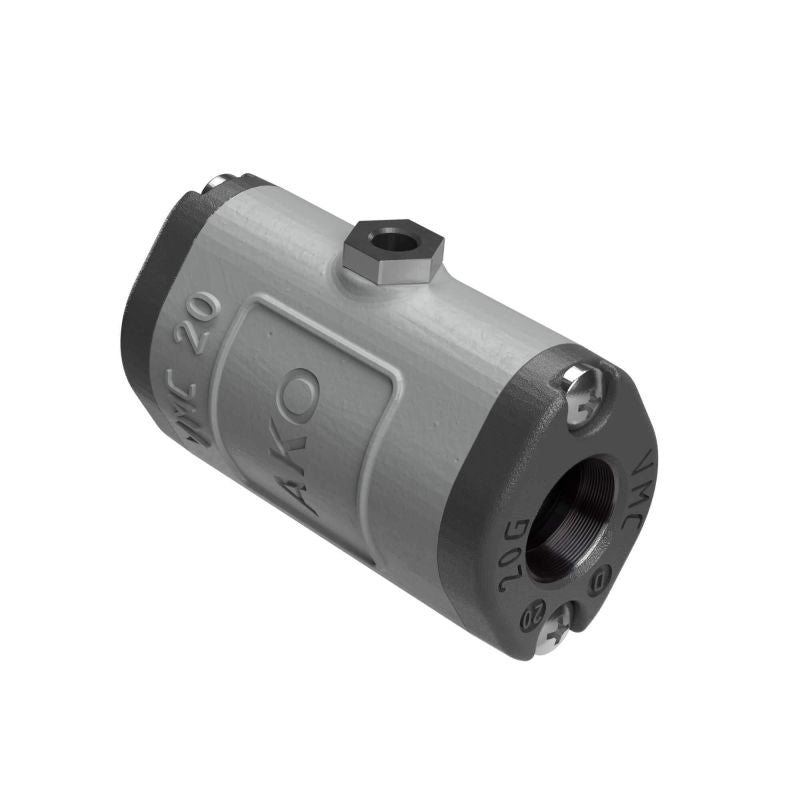

VMC Series Pinch Valve 3/4" - VMC20.05K.36G.30LX
Series VMC air operated pinch valve (part number: VMC20.05K.36G.30LX) with a nominal diameter of 3/4". Equipped with a FPM (Viton) sleeve, Internal thread type "G" (DIN ISO 228-1) connections made of Aluminum and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 20mm, 3/4" |
| Max. Operating Pressure | 60 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 60 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 248° F |
| Body Material | Aluminum |
| Connection Material | Aluminum |
| Connection Type | Internal thread type "G" (DIN ISO 228-1) |
| Sleeve Quality | FPM (Viton) |
| Control Air Connection | Internal thread G 1/8" |
