VMC Series Pinch Valve 1" - VMC25.03XK.50TA.50

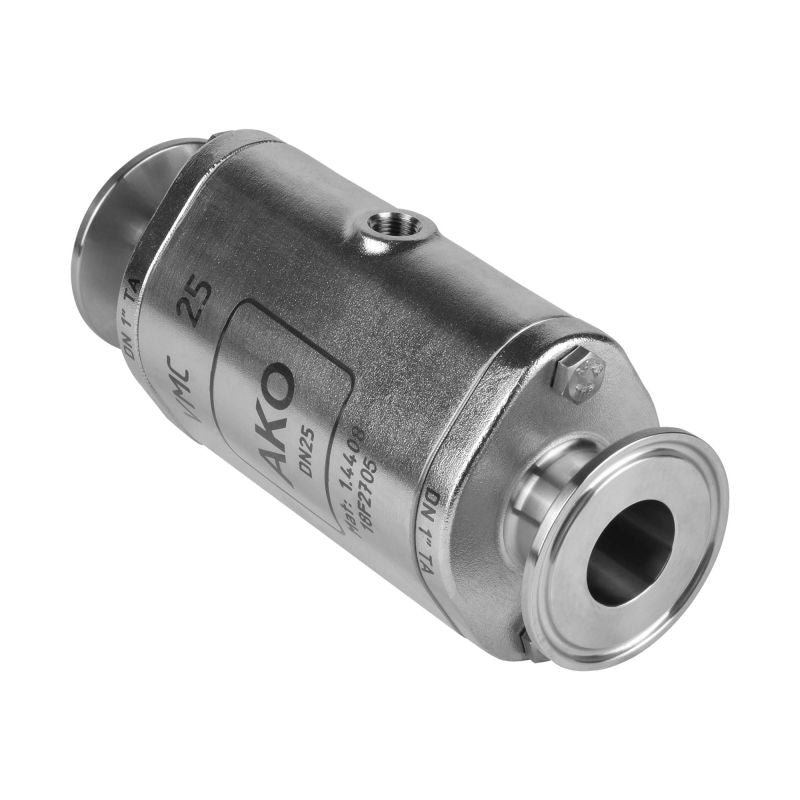

Series VMC air operated pinch valve (part number: VMC25.03XK.50TA.50) with a nominal diameter of 1". Equipped with a NR (Natural Rubber), anti-abrasive, high resilience sleeve, Tri-clamp connection DIN 32676 row C connections made of Stainless steel 1.4404 (AISI 316L) and a Stainless Steel 1.4408 (AISI 316) body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 25mm, 1" |
| Max. Operating Pressure | 80 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 35 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | Stainless Steel 1.4408 (AISI 316) |
| Connection Material | Stainless steel 1.4404 (AISI 316L) |
| Connection Type | Tri-clamp connection DIN 32676 row C |
| Sleeve Quality | NR (Natural Rubber), anti-abrasive, high resilience |
| Control Air Connection | Internal thread G 1/8" |
