VMC Series Pinch Valve 1" - VMC25.07LWK.71N.30LX

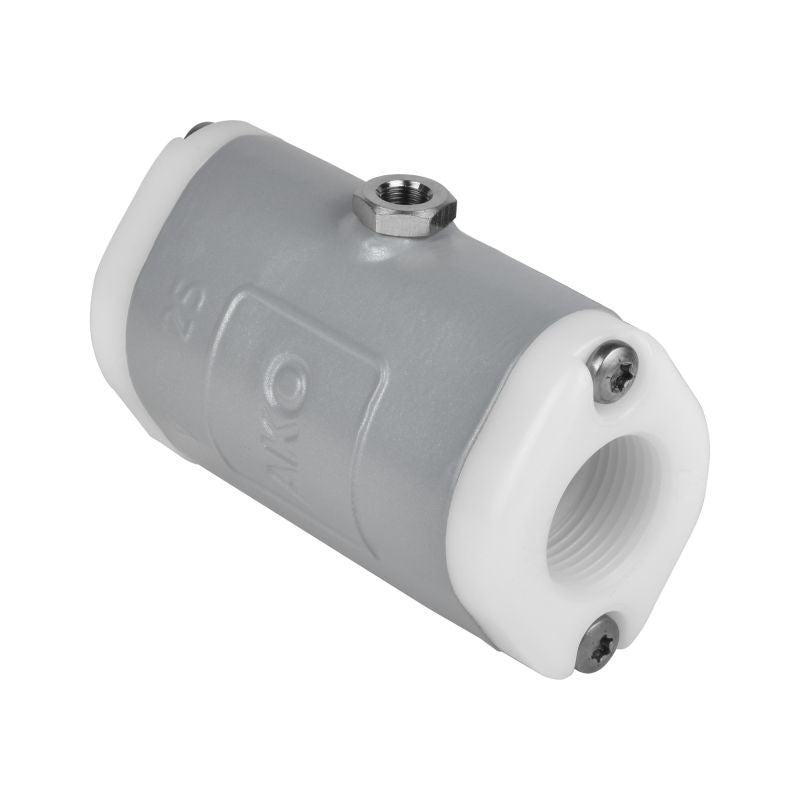

Series VMC air operated pinch valve (part number: VMC25.07LWK.71N.30LX) with a nominal diameter of 1". Equipped with a NBR (Nitrile), food grade, pale sleeve, Internal thread ASME B1.20.1 "NPT" connections made of POM-C injection molded white (Polyoxymethylene) and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 25mm, 1" |
| Max. Operating Pressure | 80 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 35 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | Aluminum |
| Connection Material | POM-C injection molded white (Polyoxymethylene) |
| Connection Type | Internal thread ASME B1.20.1 "NPT" |
| Sleeve Quality | NBR (Nitrile), food grade, pale |
| Control Air Connection | Internal thread G 1/8" |
