VMC Series Pinch Valve 1-1/4" - VMC32.01X.50N.30LX

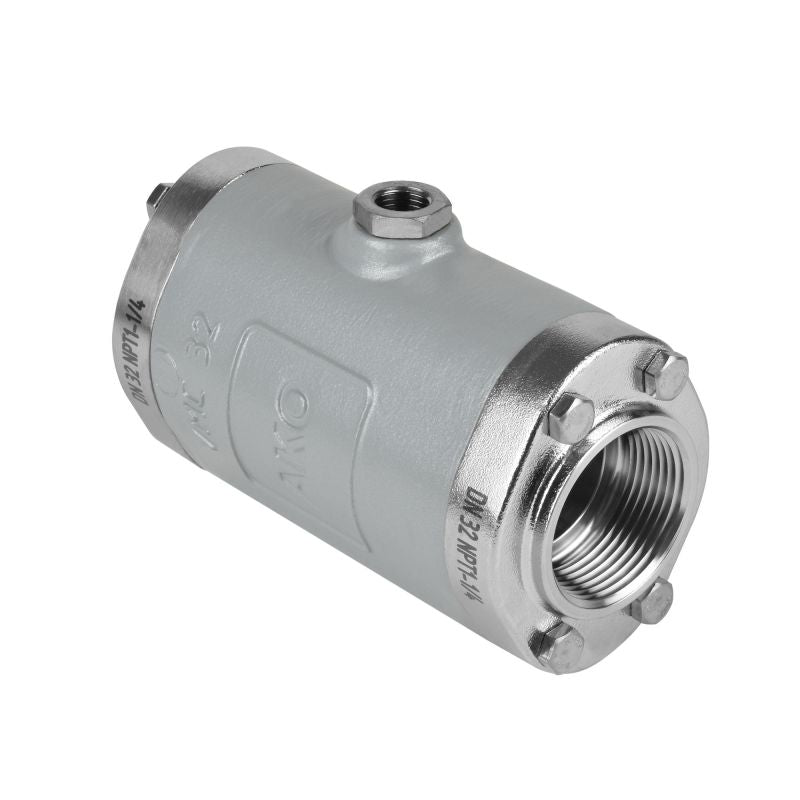

Series VMC air operated pinch valve (part number: VMC32.01X.50N.30LX) with a nominal diameter of 1-1/4". Equipped with a CR (Neoprene) sleeve, Internal thread ASME B1.20.1 "NPT" connections made of Stainless steel 1.4404 (AISI 316L) and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 32mm, 1-1/4" |
| Max. Operating Pressure | 90 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 30 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 212° F |
| Body Material | Aluminum |
| Connection Material | Stainless steel 1.4404 (AISI 316L) |
| Connection Type | Internal thread ASME B1.20.1 "NPT" |
| Sleeve Quality | CR (Neoprene) |
| Control Air Connection | Internal thread G 1/4" |
