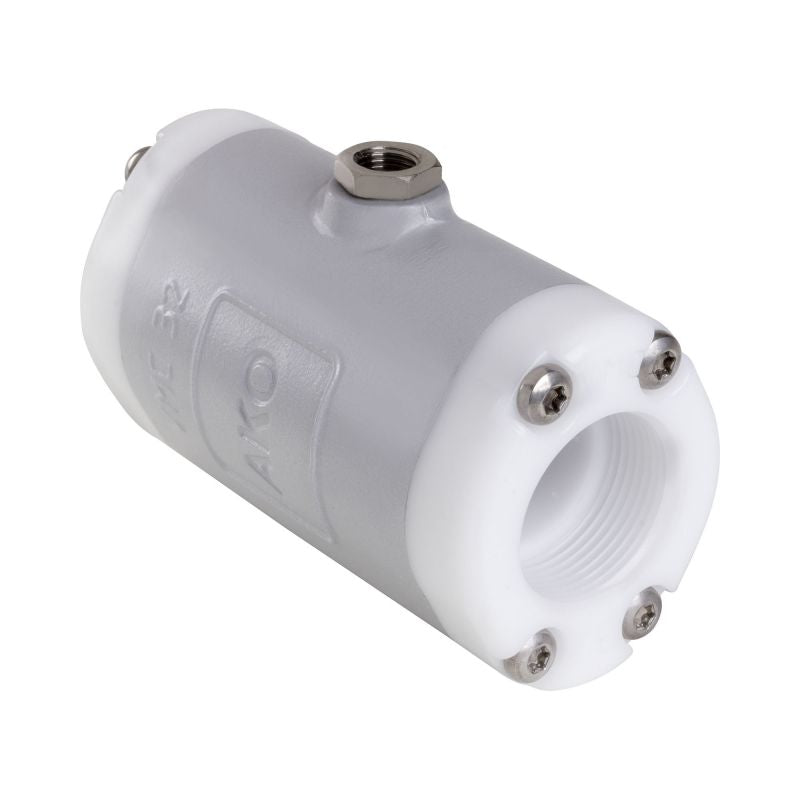

VMC Series Pinch Valve 1-1/4" - VMC32.04LW.71G.30LX
Series VMC air operated pinch valve (part number: VMC32.04LW.71G.30LX) with a nominal diameter of 1-1/4". Equipped with a EPDM, pale sleeve, Internal thread type "G" (DIN ISO 228-1) connections made of POM-C injection molded white (Polyoxymethylene) and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 32mm, 1-1/4" |
| Max. Operating Pressure | 80 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 35 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 194° F |
| Body Material | Aluminum |
| Connection Material | POM-C injection molded white (Polyoxymethylene) |
| Connection Type | Internal thread type "G" (DIN ISO 228-1) |
| Sleeve Quality | EPDM, pale |
| Control Air Connection | Internal thread G 1/4" |
