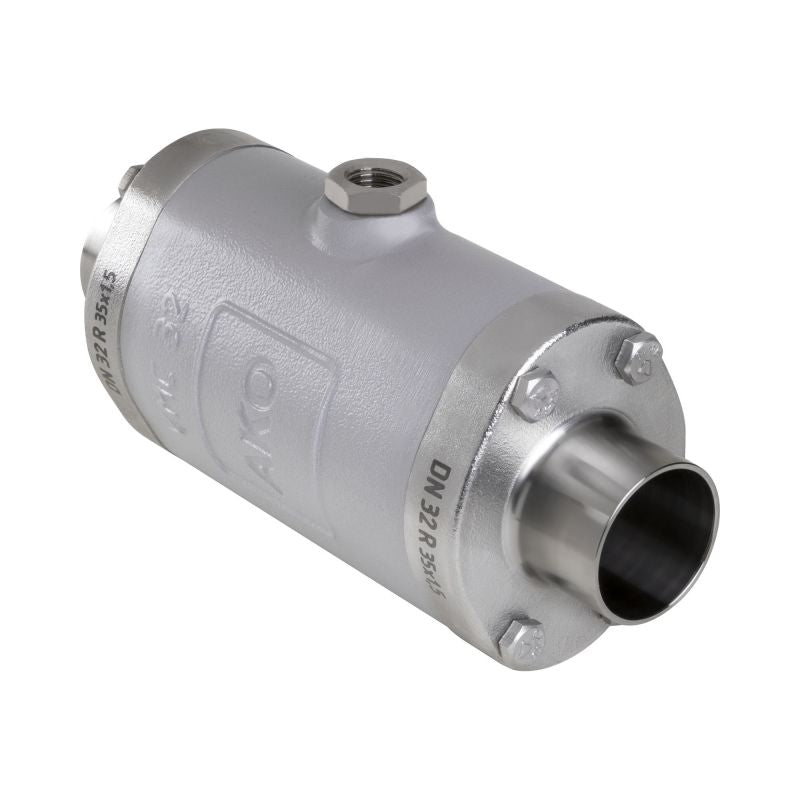

VMC Series Pinch Valve 1-1/4" - VMC32.05.50R.30LX
Series VMC air operated pinch valve (part number: VMC32.05.50R.30LX) with a nominal diameter of 1-1/4". Equipped with a FPM (Viton) sleeve, Weld-on end DIN EN 10357 series A connections made of Stainless steel 1.4404 (AISI 316L) and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 32mm, 1-1/4" |
| Max. Operating Pressure | 60 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 60 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 248° F |
| Body Material | Aluminum |
| Connection Material | Stainless steel 1.4404 (AISI 316L) |
| Connection Type | Weld-on end DIN EN 10357 series A |
| Sleeve Quality | FPM (Viton) |
| Control Air Connection | Internal thread G 1/4" |
