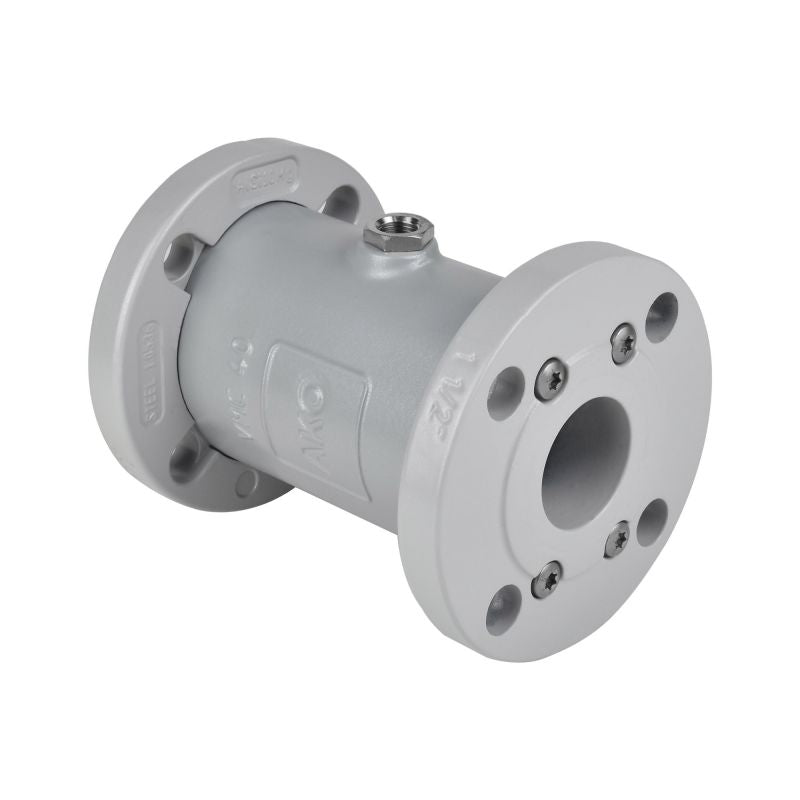

VMC Series Pinch Valve 1-1/2" - VMC40.03H.31FA.30LX
Series VMC air operated pinch valve (part number: VMC40.03H.31FA.30LX) with a nominal diameter of 1-1/2". Equipped with a NR (Natural Rubber), high temperature sleeve, Flange ANSI B16.5 / 150lbs connections made of Aluminum with medium contacted steel bushing and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 40mm, 1-1/2" |
| Max. Operating Pressure | 80 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 35 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 212° F |
| Body Material | Aluminum |
| Connection Material | Aluminum with medium contacted steel bushing |
| Connection Type | Flange ANSI B16.5 / 150lbs |
| Sleeve Quality | NR (Natural Rubber), high temperature |
| Control Air Connection | Internal thread G 1/4" |
