VMC Series Pinch Valve 1-1/2" - VMC40.04HTEC.50N.30LX

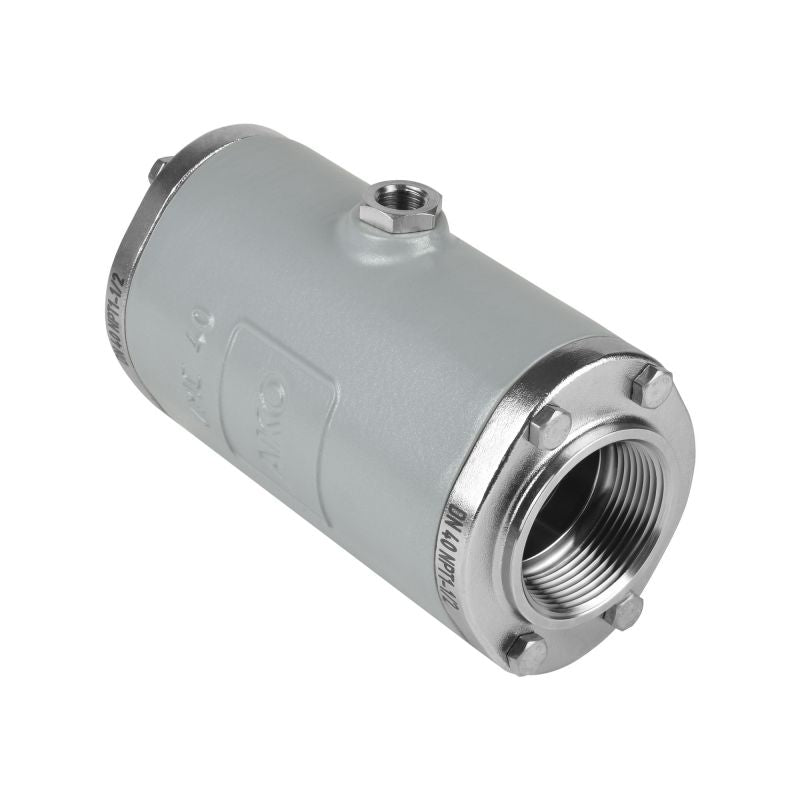

Series VMC air operated pinch valve (part number: VMC40.04HTEC.50N.30LX) with a nominal diameter of 1-1/2". Equipped with a EPDM HTEC, food grade sleeve, Internal thread ASME B1.20.1 "NPT" connections made of Stainless steel 1.4404 (AISI 316L) and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 40mm, 1-1/2" |
| Max. Operating Pressure | 80 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 35 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 194° F |
| Body Material | Aluminum |
| Connection Material | Stainless steel 1.4404 (AISI 316L) |
| Connection Type | Internal thread ASME B1.20.1 "NPT" |
| Sleeve Quality | EPDM HTEC, food grade |
| Control Air Connection | Internal thread G 1/4" |
