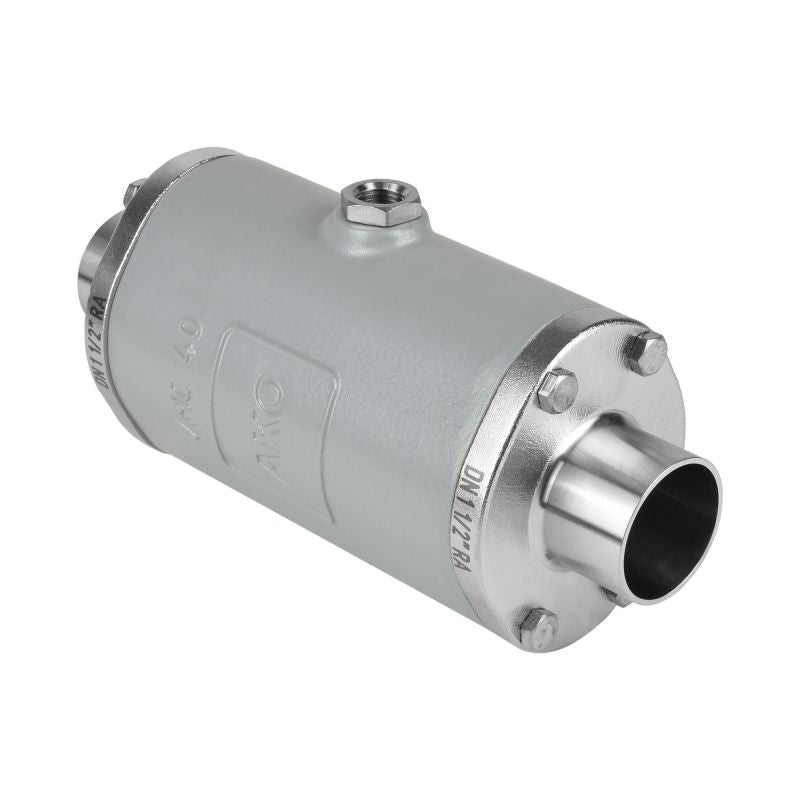

VMC Series Pinch Valve 1-1/2" - VMC40.07LS.50RA.30LX
Series VMC air operated pinch valve (part number: VMC40.07LS.50RA.30LX) with a nominal diameter of 1-1/2". Equipped with a NBR (Nitrile), food grade sleeve, Weld-on end ASTM A554 connections made of Stainless steel 1.4404 (AISI 316L) and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 40mm, 1-1/2" |
| Max. Operating Pressure | 90 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 30 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | Aluminum |
| Connection Material | Stainless steel 1.4404 (AISI 316L) |
| Connection Type | Weld-on end ASTM A554 |
| Sleeve Quality | NBR (Nitrile), food grade |
| Control Air Connection | Internal thread G 1/4" |
