VMC Series Pinch Valve 2" - VMC50.01X.50T.30LX

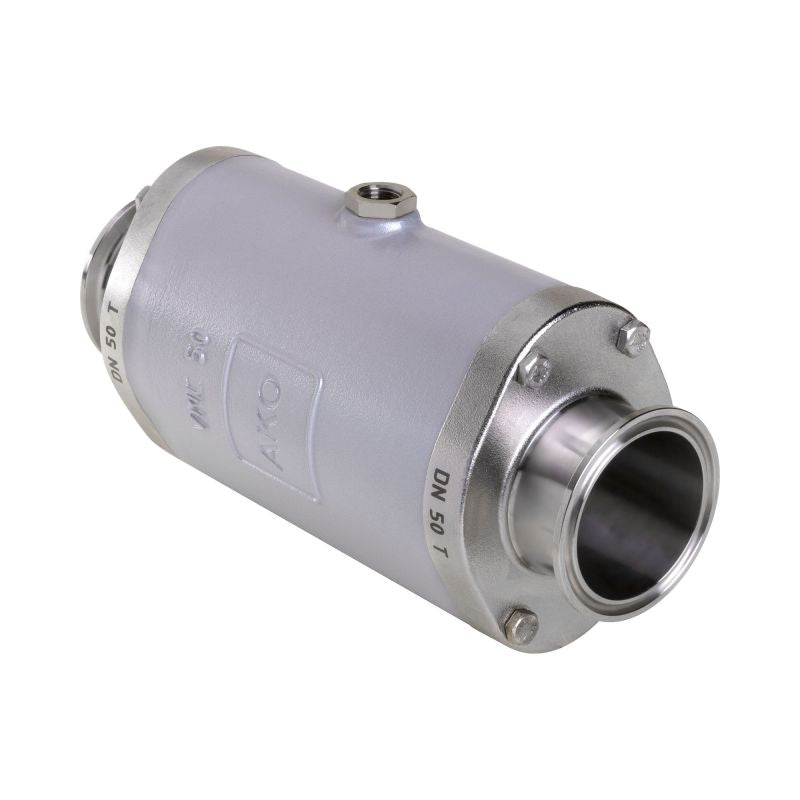

Series VMC air operated pinch valve (part number: VMC50.01X.50T.30LX) with a nominal diameter of 2". Equipped with a CR (Neoprene) sleeve, Tri-clamp connection DIN 32676 row A connections made of Stainless steel 1.4404 (AISI 316L) and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 50mm, 2" |
| Max. Operating Pressure | 90 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 30 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 212° F |
| Body Material | Aluminum |
| Connection Material | Stainless steel 1.4404 (AISI 316L) |
| Connection Type | Tri-clamp connection DIN 32676 row A |
| Sleeve Quality | CR (Neoprene) |
| Control Air Connection | Internal thread G 1/4" |
