VMC Series Pinch Valve 2" - VMC50.07LS.36G.30LX
Skip to product information
VMC Series Pinch Valve 2" - VMC50.07LS.36G.30LX

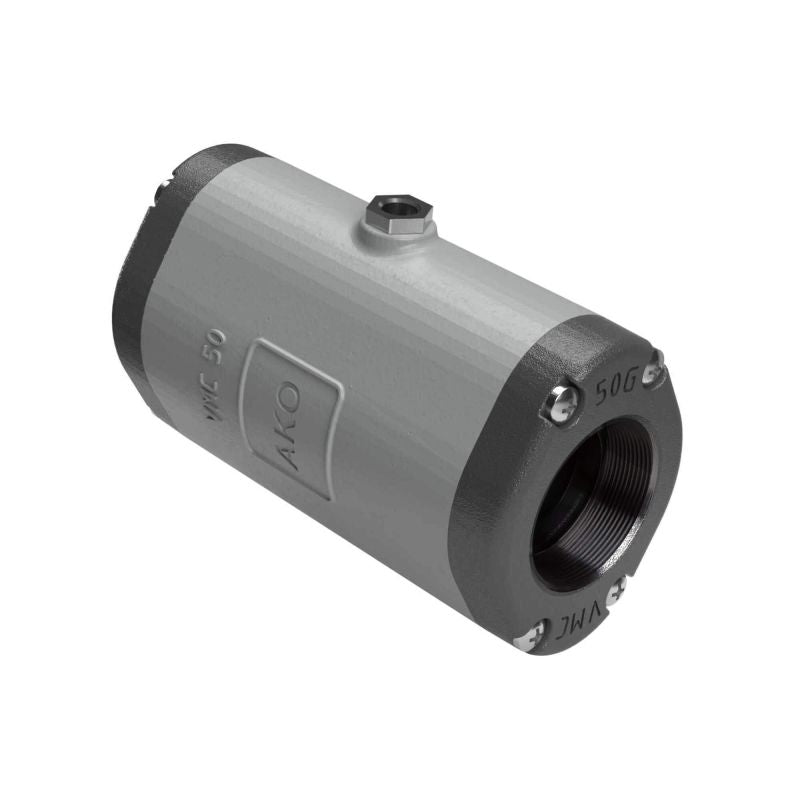

Series VMC air operated pinch valve (part number: VMC50.07LS.36G.30LX) with a nominal diameter of 2". Equipped with a NBR (Nitrile), food grade sleeve, Internal thread type "G" (DIN ISO 228-1) connections made of Aluminum and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 50mm, 2" |
| Max. Operating Pressure | 90 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 30 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | Aluminum |
| Connection Material | Aluminum |
| Connection Type | Internal thread type "G" (DIN ISO 228-1) |
| Sleeve Quality | NBR (Nitrile), food grade |
| Control Air Connection | Internal thread G 1/4" |
