VMC Series Pinch Valve 2" - VMC50.07LW.50G.50
Skip to product information
VMC Series Pinch Valve 2" - VMC50.07LW.50G.50

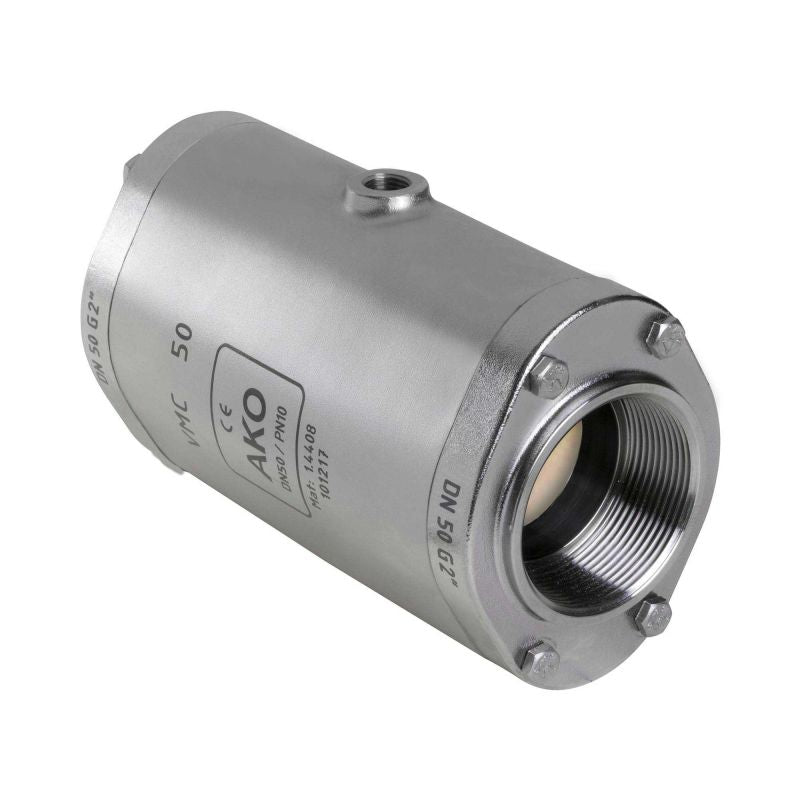

Series VMC air operated pinch valve (part number: VMC50.07LW.50G.50) with a nominal diameter of 2". Equipped with a NBR (Nitrile), food grade, pale sleeve, Internal thread type "G" (DIN ISO 228-1) connections made of Stainless steel 1.4404 (AISI 316L) and a Stainless Steel 1.4408 (AISI 316) body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 50mm, 2" |
| Max. Operating Pressure | 90 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 30 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | Stainless Steel 1.4408 (AISI 316) |
| Connection Material | Stainless steel 1.4404 (AISI 316L) |
| Connection Type | Internal thread type "G" (DIN ISO 228-1) |
| Sleeve Quality | NBR (Nitrile), food grade, pale |
| Control Air Connection | Internal thread G 1/4" |
