VMC Series Pinch Valve 2-1/2" - VMC65.03X.50F.30LX

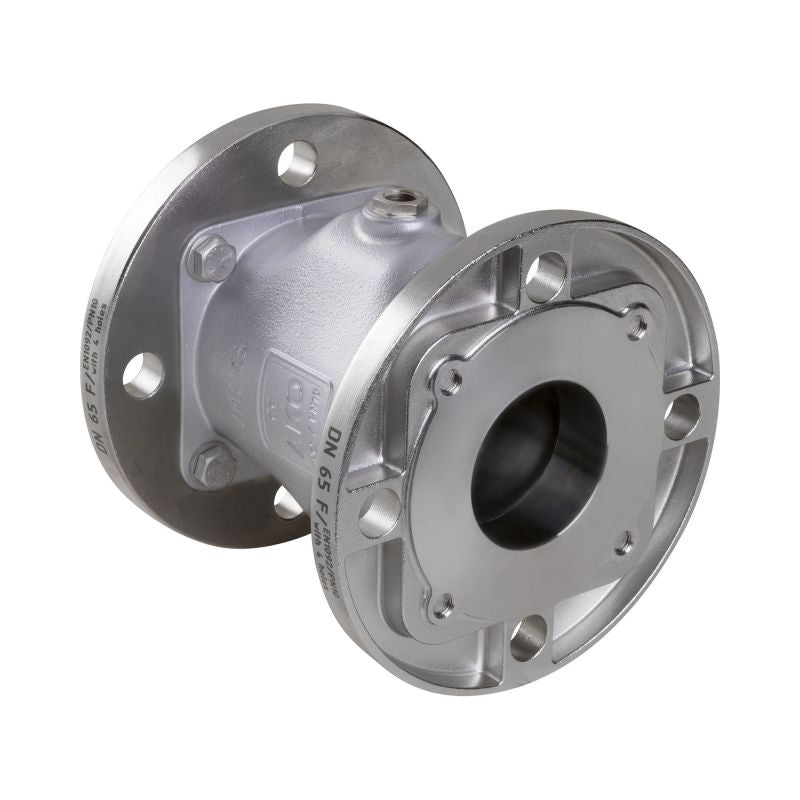

Series VMC air operated pinch valve (part number: VMC65.03X.50F.30LX) with a nominal diameter of 2-1/2". Equipped with a NR (Natural Rubber), anti-abrasive, high resilience sleeve, Flange DIN EN 1092-1 PN10/16 connections made of Stainless steel 1.4404 (AISI 316L) and an Aluminum body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 65mm, 2-1/2" |
| Max. Operating Pressure | 80 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 35 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | Aluminum |
| Connection Material | Stainless steel 1.4404 (AISI 316L) |
| Connection Type | Flange DIN EN 1092-1 PN10/16 |
| Sleeve Quality | NR (Natural Rubber), anti-abrasive, high resilience |
| Control Air Connection | Internal thread G 1/4" |
