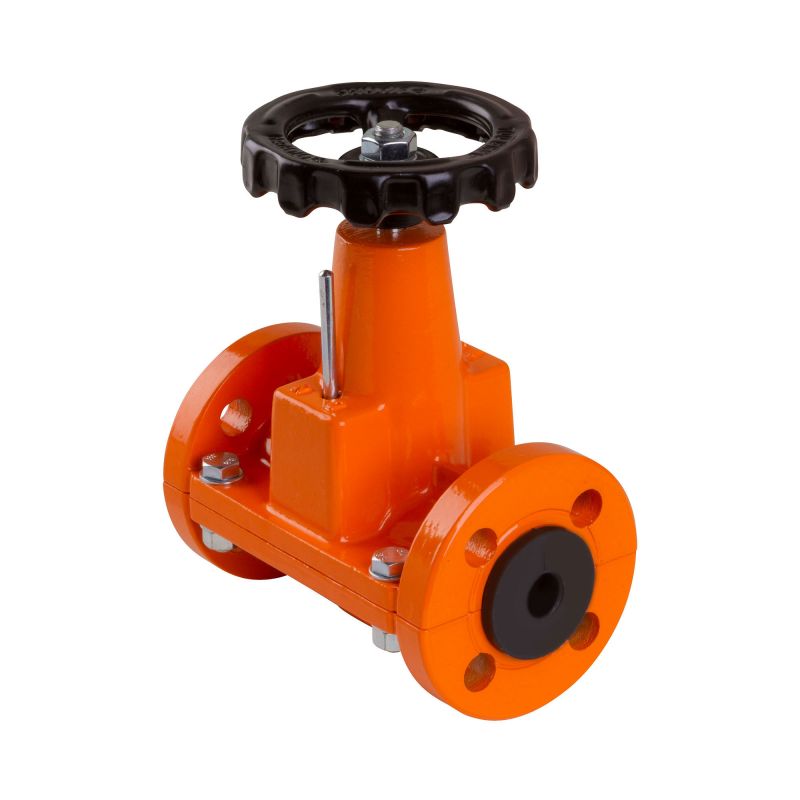

OV Series Manual Pinch Valve 2" - OV050.01.30M
Skip to product information
OV Series Manual Pinch Valve 2" - OV050.01.30M
Series OV handwheel pinch valve (part number: OV050.01.30M) with a nominal diameter of 2". Equipped with a Neoprene sleeve, Flange (DIN) connections and an Aluminum body.
Specifications
| Nominal Diameter | 50mm, 2" |
| Drive Type | Handwheel |
| Max. Operating Pressure | 75 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | Aluminum |
| Connection Type | Flange (DIN) |
| Sleeve Quality | Neoprene |
