OV Series Manual Pinch Valve 5" - OV125.01.30M

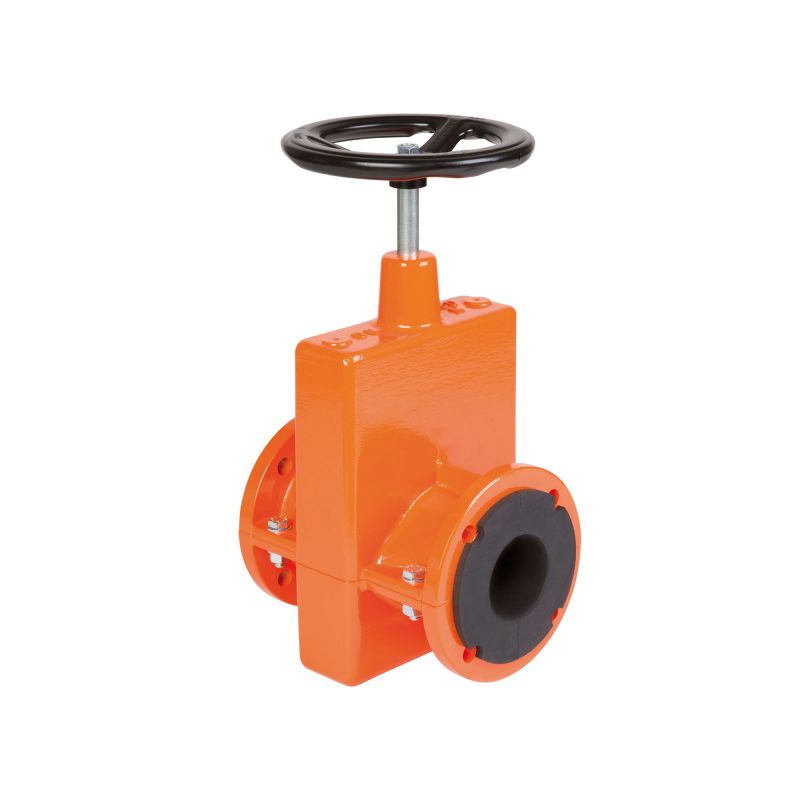

Series OV handwheel pinch valve (part number: OV125.01.30M) with a nominal diameter of 5". Equipped with a Neoprene sleeve, Flange (DIN) connections and an Aluminum body.
Specifications
| Nominal Diameter | 125mm, 5" |
| Drive Type | Handwheel |
| Max. Operating Pressure | 45 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | Aluminum |
| Connection Type | Flange (DIN) |
| Sleeve Quality | Neoprene |
