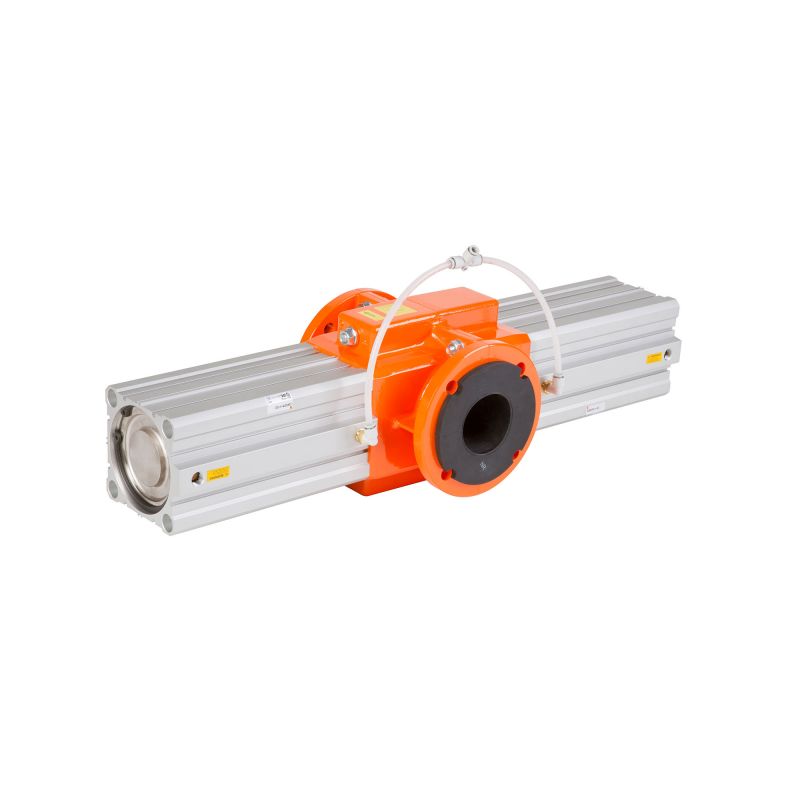

OV Series Pneumatic Pinch Valve 6" - OV150.04.30PA2
Series OV pneumatic cylinder (single-act.) pinch valve (part number: OV150.04.30PA2) with a nominal diameter of 6". Equipped with a EPDM sleeve, Flange (DIN) connections and an Aluminum body.
Specifications
| Nominal Diameter | 150mm, 6" |
| Drive Type | Pneumatic cylinder (single-act.) |
| Max. Operating Pressure | 45 psi |
| Max. Control Pressure | 116 psi |
| Min. Control Pressure | 90 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 194° F |
| Body Material | Aluminum |
| Connection Type | Flange (DIN) |
| Sleeve Quality | EPDM |
