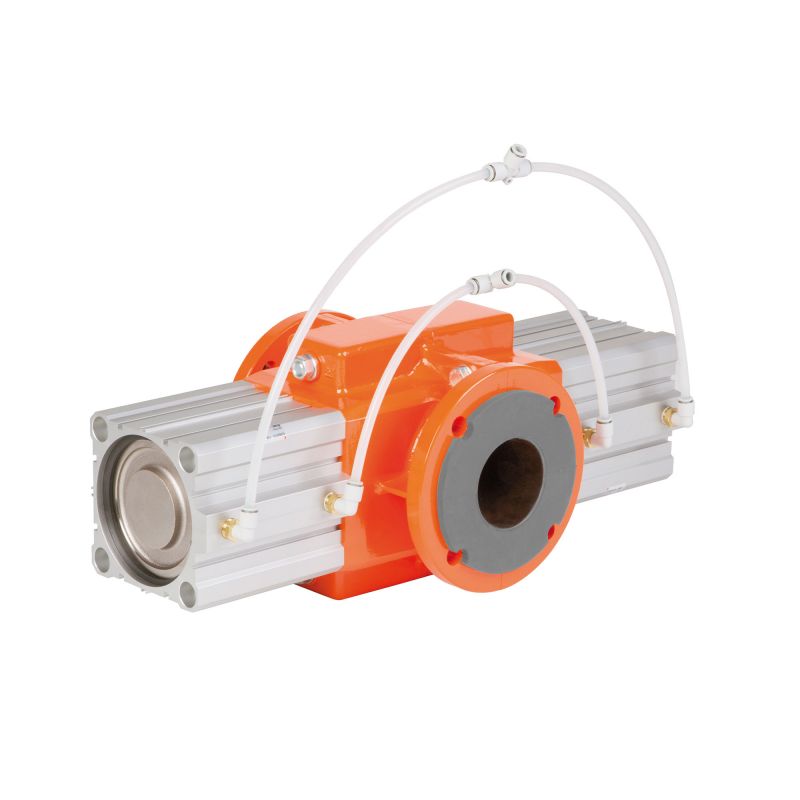

OV Series Pneumatic Pinch Valve 8" - OV200.04L.30P2
Series OV pneumatic cylinder (double-act.) pinch valve (part number: OV200.04L.30P2) with a nominal diameter of 8". Equipped with a EPDM (food, gray) sleeve, Flange (DIN) connections and an Aluminum body.
Specifications
| Nominal Diameter | 200mm, 8" |
| Drive Type | Pneumatic cylinder (double-act.) |
| Max. Operating Pressure | 60 psi |
| Max. Control Pressure | 116 psi |
| Min. Control Pressure | 90 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 194° F |
| Body Material | Aluminum |
| Connection Type | Flange (DIN) |
| Sleeve Quality | EPDM (food, gray) |
