OV Series Pneumatic Pinch Valve 10" - OV250.07.30P2

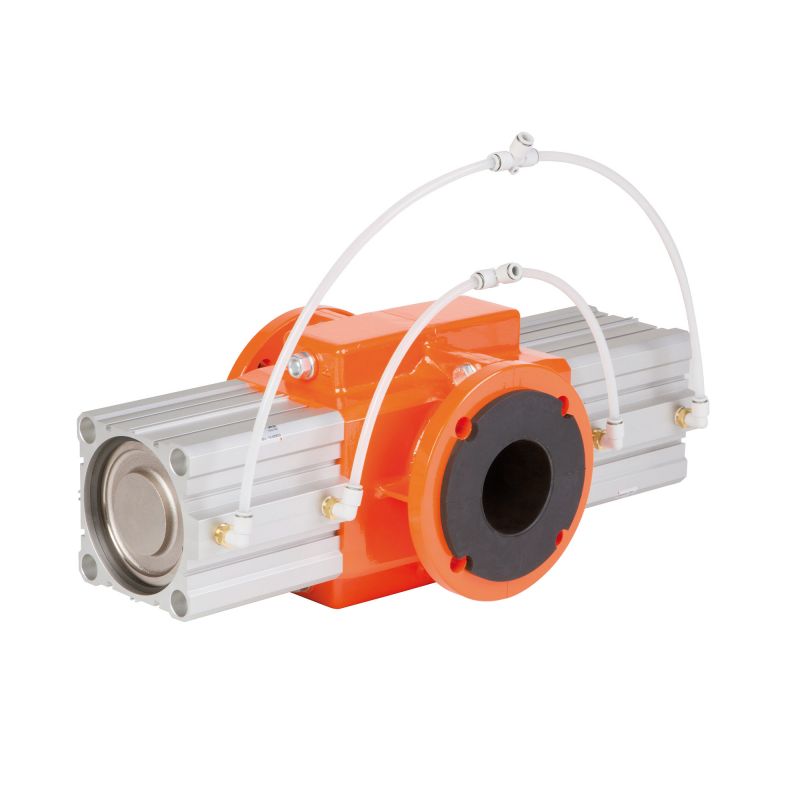

Series OV pneumatic cylinder (double-act.) pinch valve (part number: OV250.07.30P2) with a nominal diameter of 10". Equipped with a Nitrile sleeve, Flange (DIN) connections and an Aluminum body.
Specifications
| Nominal Diameter | 250mm, 10" |
| Drive Type | Pneumatic cylinder (double-act.) |
| Max. Operating Pressure | 30 psi |
| Max. Control Pressure | 116 psi |
| Min. Control Pressure | 90 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | Aluminum |
| Connection Type | Flange (DIN) |
| Sleeve Quality | Nitrile |
