VMPX Series Pinch Valve 1-1/2" - VMPX040.04HTECLF.73

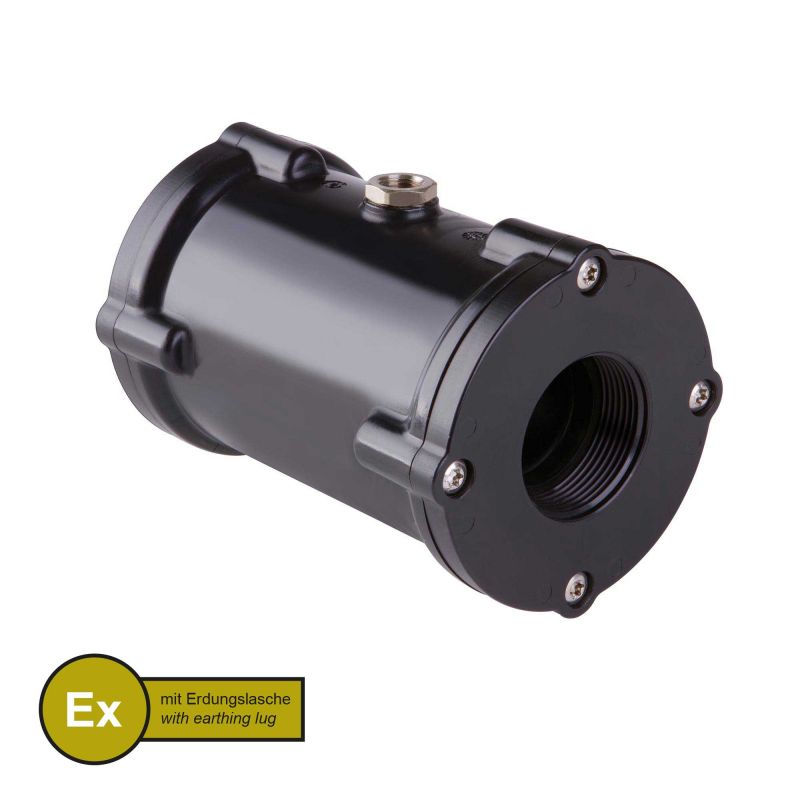

Series VMPX air operated pinch valve (part number: VMPX040.04HTECLF.73) with a nominal diameter of 1-1/2". Equipped with a EPDM HTEC, food, electr. conductive sleeve, Internal thread type "G" (DIN ISO 228-1) connections made of POM-C injection molded black conductive < 10^6 Ohm and a POM-C injection molded black conductive < 10^6 Ohm body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 40mm, 1-1/2" |
| Max. Operating Pressure | 35 psi |
| Max. Control Pressure | 75 psi |
| Min. Differential Pressure | 35 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | POM-C injection molded black conductive < 10^6 Ohm |
| Connection Material | POM-C injection molded black conductive < 10^6 Ohm |
| Connection Type | Internal thread type "G" (DIN ISO 228-1) |
| Sleeve Quality | EPDM HTEC, food, electr. conductive |
| Control Air Connection | Internal thread G 1/4" |
