VMP Series Pinch Valve 1/2" - VMP015.07LSK.71

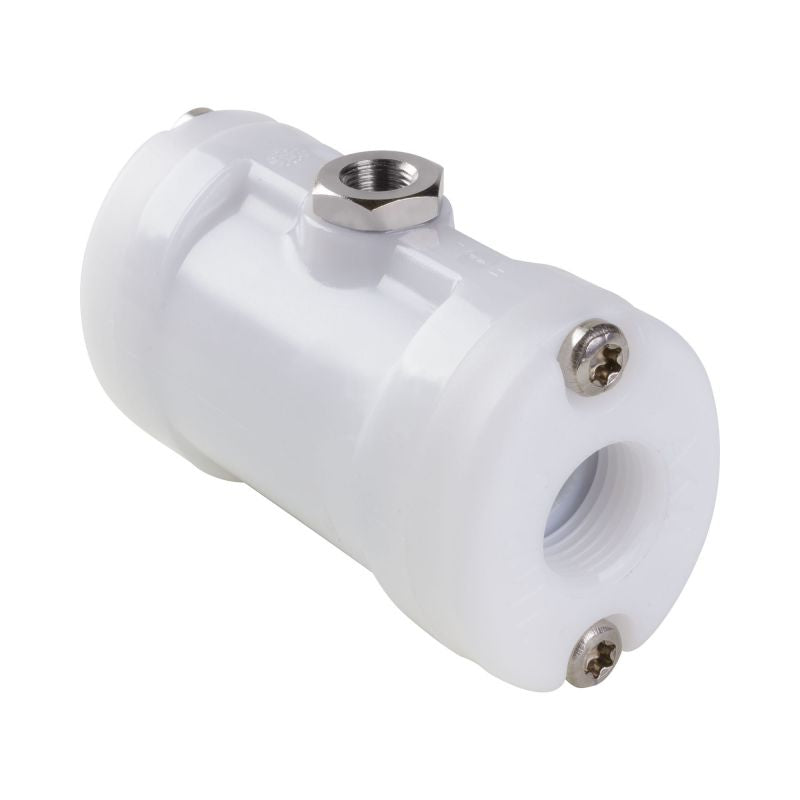

Series VMP air operated pinch valve (part number: VMP015.07LSK.71) with a nominal diameter of 1/2". Equipped with a NBR (Nitrile), food grade sleeve, Internal thread type "G" (DIN ISO 228-1) connections made of POM-C injection molded white (Polyoxymethylene) and a POM-C injection molded white body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 15mm, 1/2" |
| Max. Operating Pressure | 80 psi |
| Max. Control Pressure | 120 psi |
| Min. Differential Pressure | 35 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | POM-C injection molded white |
| Connection Material | POM-C injection molded white (Polyoxymethylene) |
| Connection Type | Internal thread type "G" (DIN ISO 228-1) |
| Sleeve Quality | NBR (Nitrile), food grade |
| Control Air Connection | Internal thread G 1/8" |
