VMP Series Pinch Valve 1-1/4" - VMP032.06.71

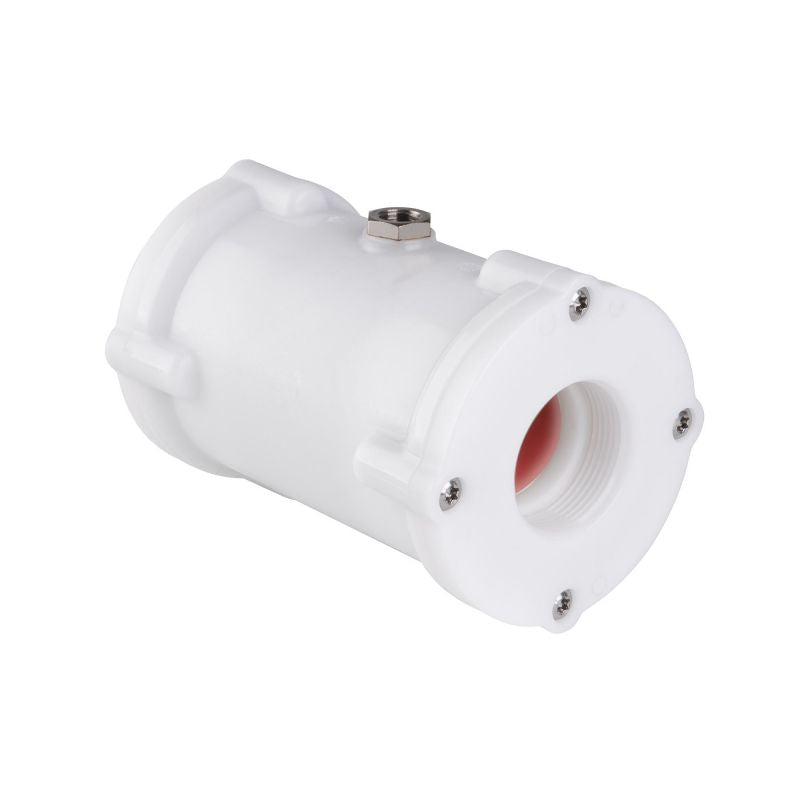

Series VMP air operated pinch valve (part number: VMP032.06.71) with a nominal diameter of 1-1/4". Equipped with a Q (Silicone) sleeve, Internal thread type "G" (DIN ISO 228-1) connections made of POM-C injection molded white (Polyoxymethylene) and a POM-C injection molded white body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 32mm, 1-1/4" |
| Max. Operating Pressure | 50 psi |
| Max. Control Pressure | 95 psi |
| Min. Differential Pressure | 45 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | POM-C injection molded white |
| Connection Material | POM-C injection molded white (Polyoxymethylene) |
| Connection Type | Internal thread type "G" (DIN ISO 228-1) |
| Sleeve Quality | Q (Silicone) |
| Control Air Connection | Internal thread G 1/4" |
