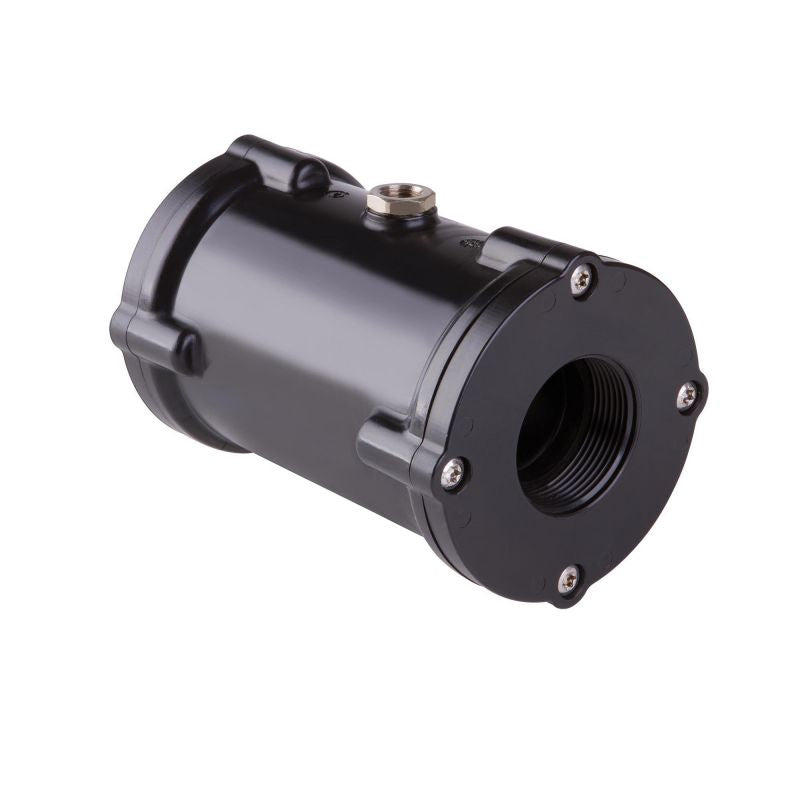

VMP Series Pinch Valve 1-1/4" - VMP032.07LS.72
Series VMP air operated pinch valve (part number: VMP032.07LS.72) with a nominal diameter of 1-1/4". Equipped with a NBR (Nitrile), food grade sleeve, Internal thread type "G" (DIN ISO 228-1) connections made of POM-C injection molded black (Polyoxymethylene) and a POM-C injection molded black body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 32mm, 1-1/4" |
| Max. Operating Pressure | 65 psi |
| Max. Control Pressure | 95 psi |
| Min. Differential Pressure | 30 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | POM-C injection molded black |
| Connection Material | POM-C injection molded black (Polyoxymethylene) |
| Connection Type | Internal thread type "G" (DIN ISO 228-1) |
| Sleeve Quality | NBR (Nitrile), food grade |
| Control Air Connection | Internal thread G 1/4" |
