VMP Series Pinch Valve 1-1/2" - VMP040.05.72

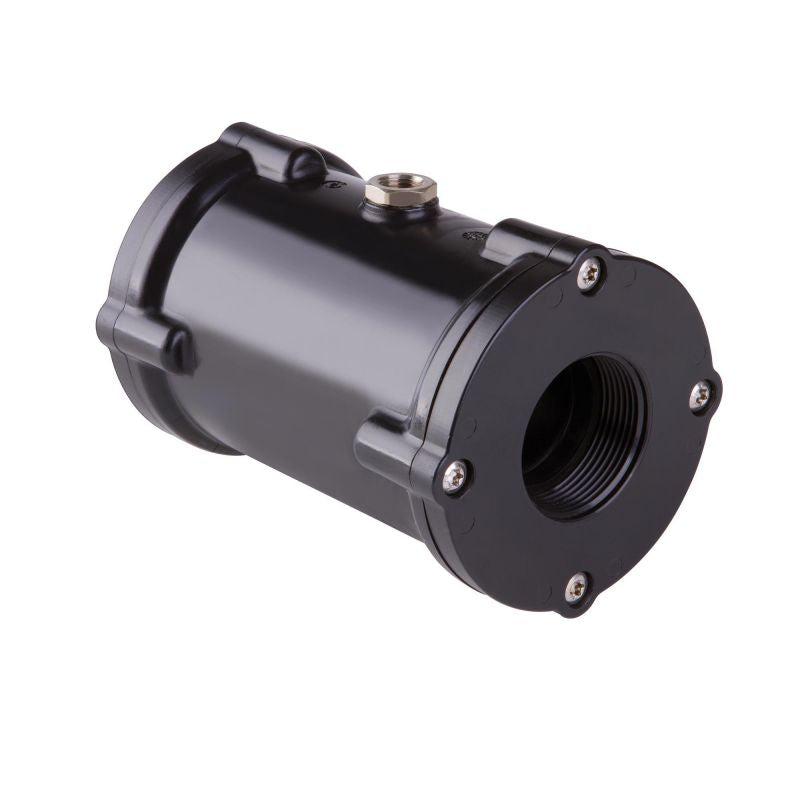

Series VMP air operated pinch valve (part number: VMP040.05.72) with a nominal diameter of 1-1/2". Equipped with a FPM (Viton) sleeve, Internal thread type "G" (DIN ISO 228-1) connections made of POM-C injection molded black (Polyoxymethylene) and a POM-C injection molded black body. Sleeve, body and connections can be replaced separately if worn or defective.
Specifications
| Nominal Diameter | 40mm, 1-1/2" |
| Max. Operating Pressure | 35 psi |
| Max. Control Pressure | 95 psi |
| Min. Differential Pressure | 60 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | POM-C injection molded black |
| Connection Material | POM-C injection molded black (Polyoxymethylene) |
| Connection Type | Internal thread type "G" (DIN ISO 228-1) |
| Sleeve Quality | FPM (Viton) |
| Control Air Connection | Internal thread G 1/4" |
