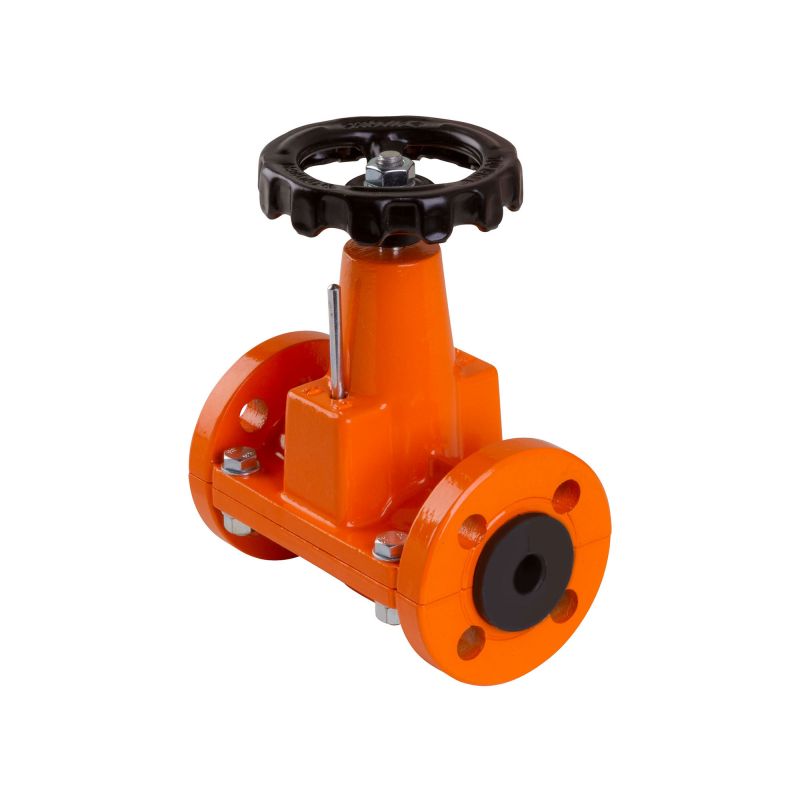

OV Series Manual Pinch Valve 1-1/4" - OV032.03.30M
Series OV handwheel pinch valve (part number: OV032.03.30M) with a nominal diameter of 1-1/4". Equipped with a Natural rubber sleeve, Flange (DIN) connections and an Aluminum body.
Specifications
| Nominal Diameter | 32mm, 1-1/4" |
| Drive Type | Handwheel |
| Max. Operating Pressure | 75 psi |
| Min. Operating Temperature | 14° F |
| Max. Operating Temperature | 176° F |
| Body Material | Aluminum |
| Connection Type | Flange (DIN) |
| Sleeve Quality | Natural rubber |
