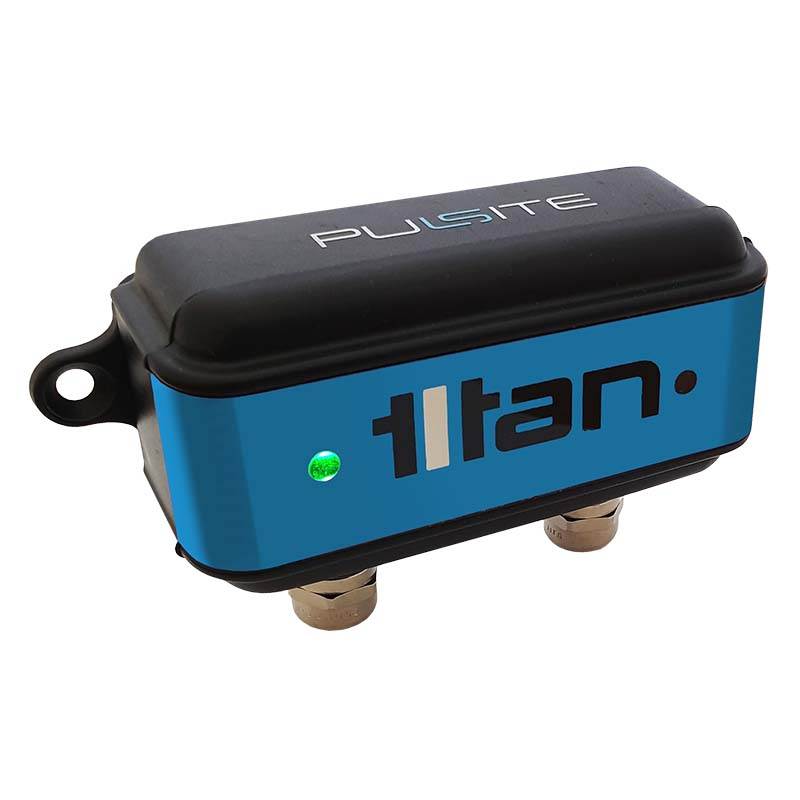

Pulsite Link Pulse Convertor
$400.10
Ships in ~4 weeks
The Titan Pulsite® Link Pulse and Analog Converter converts pulse-output flow-meter signals into configurable analog and NPN/PNP outputs for PLCs, controls, data acquisition, and flow alarms. USB access and Titan Interface Software simplify setup, testing, linearization, and data streaming.
Features
- Accepts pulse and reed-switch inputs
- Provides 5 VDC sensor power
- 4–20 mA, 0–5 VDC, or 0–10 VDC analog output
- NPN and PNP pulse outputs
- Configurable flow alarms
- USB setup, diagnostics, and ASCII flow streaming
- Calibration-point input for signal linearization
- PC data logging through Titan Interface Software
Technical Specifications
- Power: 15–24 VDC regulated
- Input: Pulse up to 5 kHz; reed switch up to 400 Hz
- Analog outputs: 4–20 mA, 0–5 VDC, or 0–10 VDC
- Pulse outputs: NPN and PNP
- Sensor supply: 5 VDC
- Operating temperature: 0–65°C
- Enclosure: IP64
Typical Applications
- PLC integration
- Flow-meter signal conditioning
- Flow alarms and control systems
- Test rigs and data acquisition
- Improved linearization of mechanical flow meters
Configuration Options
Configure input scaling, analog output range, pulse behavior, alarms, and calibration points with Titan Interface Software. This version is supplied without the local LCD display.
Need help selecting the right configuration? Send us the flow meter model, pulse output/K-factor, PLC or controller input type, and required output signal.
