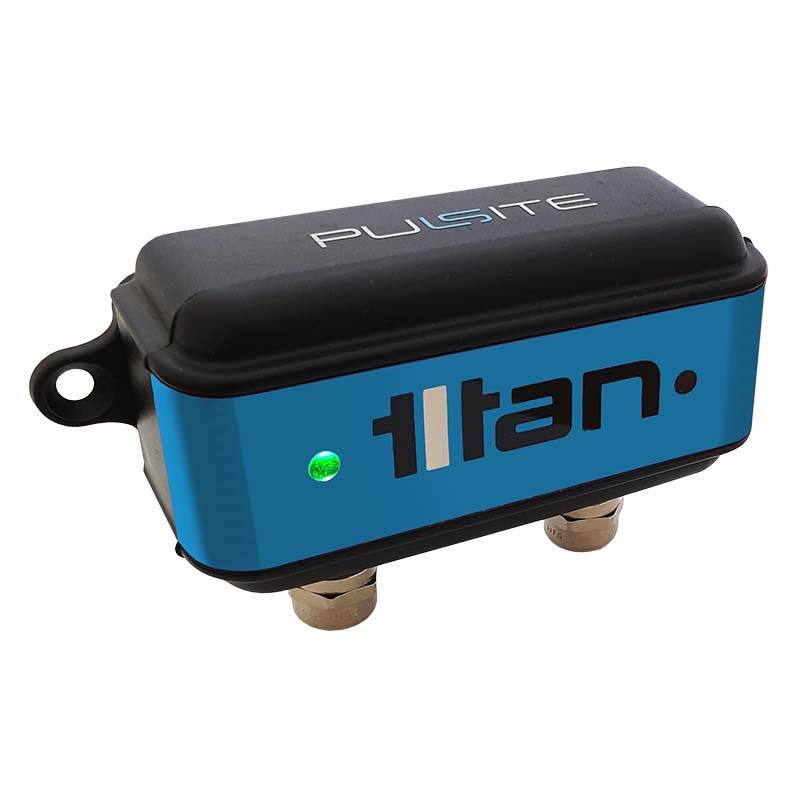

Pulsite Link Pulse Convertor Display
$500.04
Ships in ~4 weeks
The Titan Pulsite® Link Pulse and Analog Converter with Display combines signal conditioning with local flow indication. It converts pulse-output flow-meter signals into configurable analog and NPN/PNP outputs while the LCD can show flow rate, total, or both.
Features
- LCD display for flow rate, total, or alternating rate/total indication
- Accepts pulse and reed-switch inputs
- Provides 5 VDC sensor power
- 4–20 mA, 0–5 VDC, or 0–10 VDC analog output
- NPN and PNP pulse outputs
- Local and remote total reset
- Configurable flow alarms
- USB setup, diagnostics, ASCII flow streaming, and PC data logging
- Calibration-point input for signal linearization
Technical Specifications
- Power: 15–24 VDC regulated
- Input: Pulse up to 5 kHz; reed switch up to 400 Hz
- Analog outputs: 4–20 mA, 0–5 VDC, or 0–10 VDC
- Pulse outputs: NPN and PNP
- Sensor supply: 5 VDC
- Operating temperature: 0–65°C
- Enclosure: IP64
Typical Applications
- PLC integration with local indication
- Flow rate and total display
- Flow-meter signal conditioning
- Flow alarms and control systems
- Test rigs and data acquisition
Configuration Options
Configure the display mode, input scaling, analog output range, pulse behavior, alarms, and calibration points with Titan Interface Software.
Need help selecting the right configuration? Send us the flow meter model, pulse output/K-factor, PLC or controller input type, required output signal, and display requirements.
