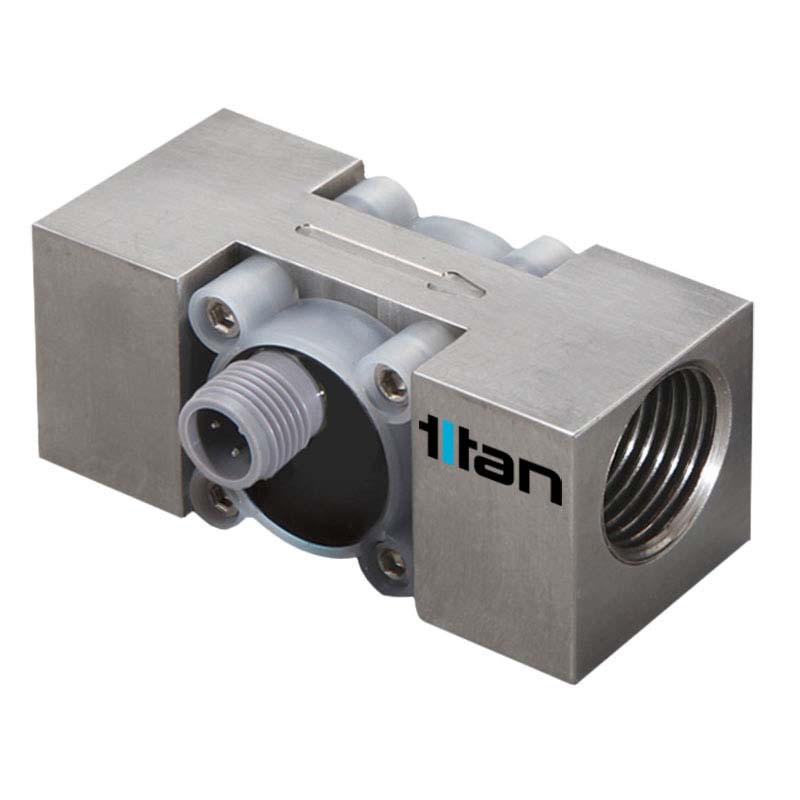

Titan 1000 Series - PVDF Body - NPT 1/2" - Uncalibrated
Titan 1000 Series - PVDF Body - NPT 1/2" - Uncalibrated
Ships in ~4 weeks
The Titan 1000 Series Turbine Flow Meter is a compact Hall-effect turbine meter for low-viscosity liquids, batching, dosing, laboratory, and OEM systems. The PVDF body provides a chemically resistant process-wetted construction with sapphire bearings for long service life.
Features
- Seven flow ranges covering 0.05–30 L/min
- Sapphire bearings
- Hall-effect sensing
- NPN pulse output is standard; the NPN/PNP output option is limited to configurations below 60°C
- 0.1% repeatability
- IP65 enclosure rating
- Alternative seal materials and OEM configurations available
Technical Specifications
- Body material: PVDF
- Overall flow range: 0.05–30 L/min
- Linearity: 1–2% FSD depending on selected flow range
- Standard pressure rating: 10 bar
- Power: 4.5–24 VDC
- Temperature: -25 to 125°C
- Process thread: NPT 1/2 in
- Standard seal: Viton™
- Calibration status: Uncalibrated
Typical Applications
- Chemical dispensing and dosing
- Liquid batching
- Laboratory test systems
- Cooling equipment
- Active flow alarms
- Semiconductor equipment
- OEM applications
Configuration Options
This product is configured with a PVDF body, NPT 1/2 in process connection, and uncalibrated calibration status. Select the required flow range, seal material, and output/configuration option. The NPN/PNP output option is limited to configurations below 60°C; standard NPN versions can be used at higher temperatures within the published meter limits.
Need help selecting the right configuration? Send us the liquid, minimum and maximum flow, viscosity, pressure, temperature, and connection requirements.
