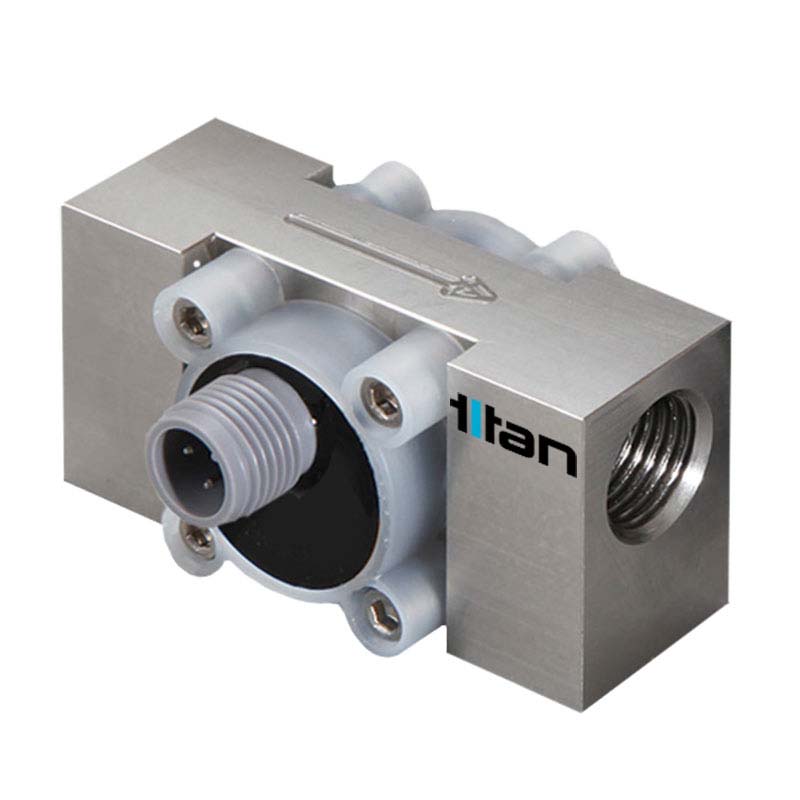

Titan 900 Series - SS 316 - BSP P 1/4" - Uncalibrated

The Titan 900 Series Turbine Flow Meter is a compact Hall-effect turbine meter for low-viscosity liquids, batching, dosing, laboratory, and OEM systems. The 316 stainless steel body provides durable 316 stainless-steel wetted construction for compatible liquids, with sapphire bearings for long service life.

Features

• Six flow ranges covering 0.05–15 L/min
• Sapphire bearings
• Hall-effect sensing
• NPN pulse output is standard; the NPN/PNP output option is limited to configurations below 60°C
• 0.1% repeatability
• IP65 enclosure rating
• Alternative seal materials and OEM configurations available

Technical Specifications

• Body material: 316 stainless steel
• Overall flow range: 0.05–15 L/min
• Linearity: 1–2% FSD depending on selected flow range
• Standard pressure rating: 10 bar
• High-pressure option: 40 bar on applicable 316 stainless-steel configurations
• Power: 4.5–24 VDC
• Temperature: -25 to 125°C
• Process thread: BSPP 1/4 in
• Standard seal: Viton™
• Calibration status: Uncalibrated

Typical Applications

• Chemical dispensing and dosing
• Liquid batching
• Laboratory test systems
• Cooling equipment
• Active flow alarms
• Semiconductor equipment
• OEM applications

Configuration Options

This product is configured with a 316 stainless steel body, BSPP 1/4 in process connection, and uncalibrated calibration status. Select the required flow range, seal material, and output/configuration option. The NPN/PNP output option is limited to configurations below 60°C; standard NPN versions can be used at higher temperatures within the published meter limits. The optional 40 bar variant is available only where listed within this stainless-steel product.

Need help selecting the right configuration? Send us the liquid, minimum and maximum flow, viscosity, pressure, temperature, and connection requirements.
