Titan Beverage Meter 0.2-10LPM

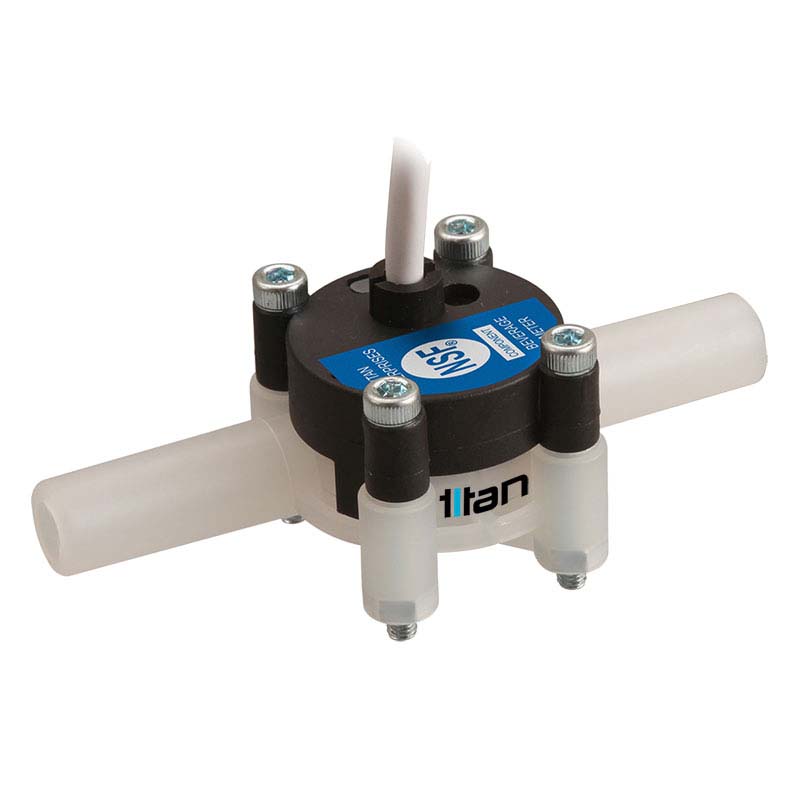

The Titan Beverage Mini Turbine Flow Meter is designed for low-viscosity beverage dispensing and food-service systems. Its non-metallic wetted construction, sapphire bearings, and Hall-effect sensing provide a compact pulse-output solution for drinks and other compatible clean liquids.

Features

• NSF/ANSI 169 certified for food-equipment applications
• 0.6–10 L/min flow range
• PVDF body with non-metallic wetted components
• Sapphire bearings and Hall-effect sensing
• 3/8 in John Guest style process connection
• 0.1% repeatability
• IP65 enclosure rating

Technical Specifications

• Model: 300-010
• Flow range: 0.6–10 L/min
• Linearity: ±1.0% FSD
• Pressure rating: 10 bar
• Power: 4.5–24 VDC
• Maximum temperature: 70°C
• Standard seal: Viton™
• Output: Pulse

Typical Applications

• Coffee, beer, wine, spirits, and soft-drink dispensing
• Food and beverage production equipment
• Batch dosing
• Beer monitoring
• Cooling equipment
• Ultra-pure water and compatible low-viscosity liquids

Configuration Options

Select the required cable length. Confirm liquid compatibility, pressure, and temperature before installation.

Need help selecting the right configuration? Send us the liquid, minimum and maximum flow, viscosity, pressure, temperature, and connection requirements.
