Titan FT2 Turbine - 1" BSP - Optical Detection - Rubber grommet

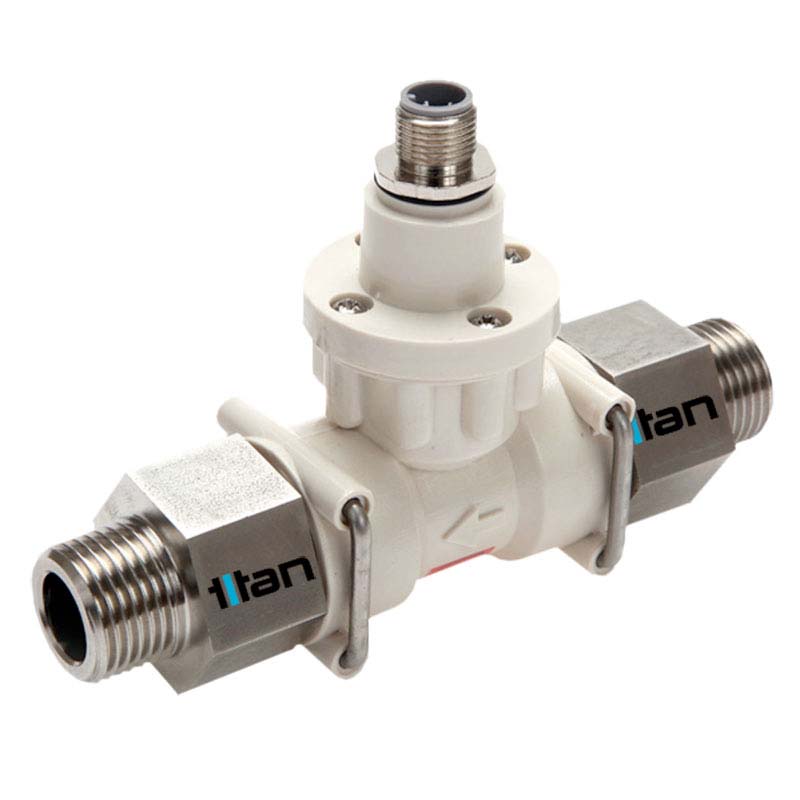

The Titan FT2 Optical-Detection Turbine Flow Meter is a radial-flow turbine meter for optically clear, low-viscosity liquids. It combines a PPS meter body, sapphire bearings, optical sensing, and interchangeable plug-in fittings. The process connection for this model is 1 in BSP.

Features

• Nine flow ranges from 0.02 to 160 L/min
• Optical sensing for optically clear liquids
• Sapphire bearings
• Individual traceable calibration
• Pulse output
• Choice of plug-in fitting materials and electrical terminations
• IP65 enclosure rating

Technical Specifications

• Process connection: 1 in BSP
• Meter body: PPS
• Overall flow range: 0.02–160 L/min across nine models
• Pressure rating: 15 bar
• Power: 7.5–24 VDC
• Temperature: -10 to 60°C
• Repeatability: 0.1%
• Standard seal: Viton™
• Output: Pulse
• Detection: Optical detection
• Electrical connection: Rubber grommet

Typical Applications

• Optically clear low-viscosity liquids
• Water and water treatment
• Cooling equipment
• Laboratory test systems
• Semiconductor equipment
• OEM flow monitoring

Configuration Options

This product is configured with 1" BSP process connection, optical detection, and Rubber grommet. Select the required flow range, plug-in fitting material, and seal material. The fitting material is a process-fitting choice; the FT2 meter body itself is PPS.

Need help selecting the right configuration? Send us the liquid, minimum and maximum flow, viscosity, pressure, temperature, and connection requirements.
