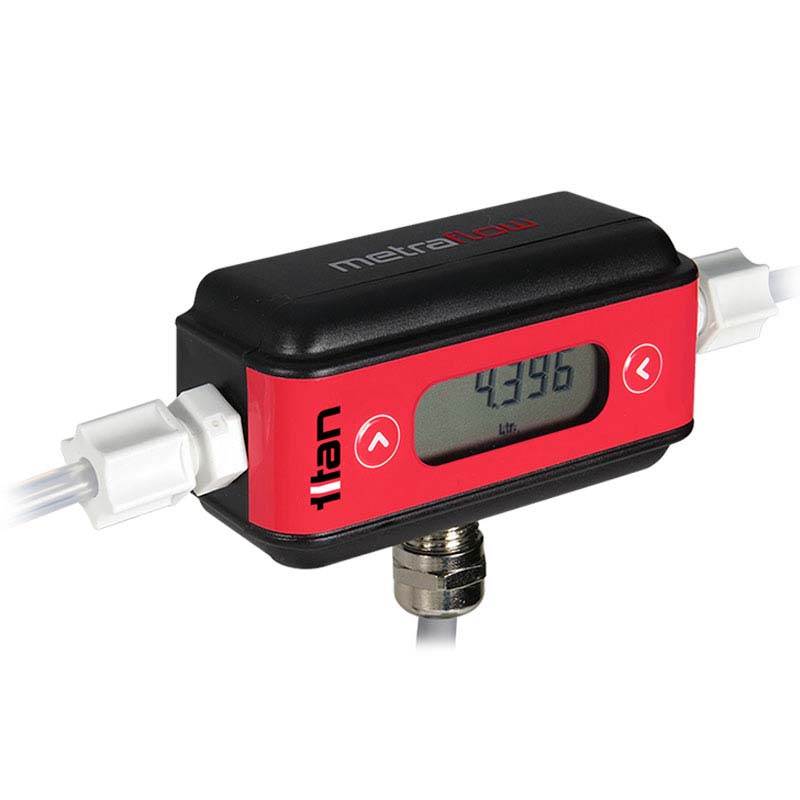

Titan Metraflow Ultrasonic

The Titan MetraFlow® PFA Ultrasonic Flow Meter is designed for ultra-pure and chemically demanding liquids where a clean, unobstructed wetted path is important. Ultrasonic time-of-flight measurement is made through a straight PFA tube with no internal moving parts, dead zones, or flow obstructions.

Features

• Non-intrusive ultrasonic measurement
• PFA wetted flow tube
• No moving parts or internal flow obstructions
• Two low-flow ranges
• Built-in display
• USB programming and interface connection
• Designed to minimize ion contamination in high-purity systems

Technical Specifications

• 1/8 in tube model: 0.02–1.0 L/min
• 1/4 in tube model: 0.1–5.0 L/min
• Linearity: ±0.5% FSD
• Repeatability: ±0.1% + ±0.02% FSD
• Wetted component: FDA-approved PFA tube
• 1/8 in working pressure: 27.7 bar(g) at 25°C; 20.8 bar(g) at 60°C
• 1/4 in working pressure: 16.7 bar(g) at 25°C; 12.6 bar(g) at 60°C

Typical Applications

• Semiconductor and microelectronics
• Ultra-pure water
• Pharmaceutical and biotechnology equipment
• Laboratory and research systems
• Aggressive chemical metering
• Medical and pilot-plant applications

Configuration Options

Choose the required tube size and flow range: 1/8 in for 0.02–1.0 L/min or 1/4 in for 0.1–5.0 L/min. Working pressure decreases with temperature, so verify pressure at the actual operating temperature.

Need help selecting the right configuration? Send us the liquid, minimum and maximum flow, viscosity, pressure, temperature, and connection requirements.
