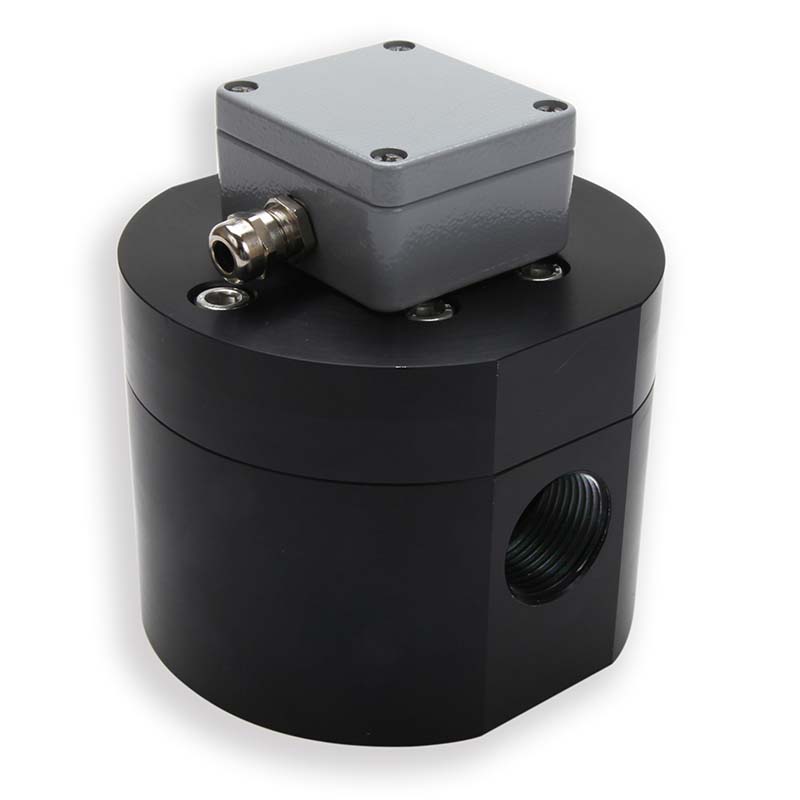

Titan OG6 Oval Gear - Aluminium - NPT
Titan OG6 Oval Gear - Aluminium - NPT
Ships in ~4 weeks
The Titan OG6 Oval Gear Flow Meter is a positive-displacement meter for oils, viscous liquids, batching, and OEM flow measurement. The aluminum body provides a durable wetted construction option while the oval-gear measuring principle delivers repeatable pulse output without upstream flow conditioning.
Features
- Positive-displacement oval-gear measuring principle
- Low pressure drop with no upstream flow conditioning required
- Individual calibration
- 0.1% repeatability
- Hall-effect, reed-switch, and NAMUR sensor options
- High-viscosity configurations available; for viscosities above 1000 cSt, specially cut gears are required and the usable flow range is reduced
- Hazardous-area sensor options available where applicable
Technical Specifications
- Body material: aluminum
- Standard flow range on 30 cSt oil: 2–200 L/min
- Standard flow range on water-like liquids: 10–200 L/min
- Standard process fitting size: 1-1/2 in
- Approximate K-factor: 21 pulses/L for the standard model
- Output: Pulse; detector and electrical output depend on the selected sensor configuration
- Pressure and temperature limits: Depend on body, seal, sensor, and selected pressure/temperature configuration
- Selected process thread: NPT
Typical Applications
- Lubrication and hydraulic oils
- Engine and component test systems
- Batching and additive dosing
- High-viscosity liquid measurement
- OEM equipment and process skids
- Compatible chemical service after wetted-material and seal compatibility are confirmed
Configuration Options
This product is configured with aluminum body and NPT process thread. Select the remaining temperature, seal, and sensor/configuration options required for the application. Confirm the operating limits of the exact selected part number before installation.
Need help selecting the right configuration? Send us the liquid, minimum and maximum flow, viscosity, pressure, temperature, and connection requirements.
