Titan Process Atrato
$1,159.98
Ships in ~4 weeks

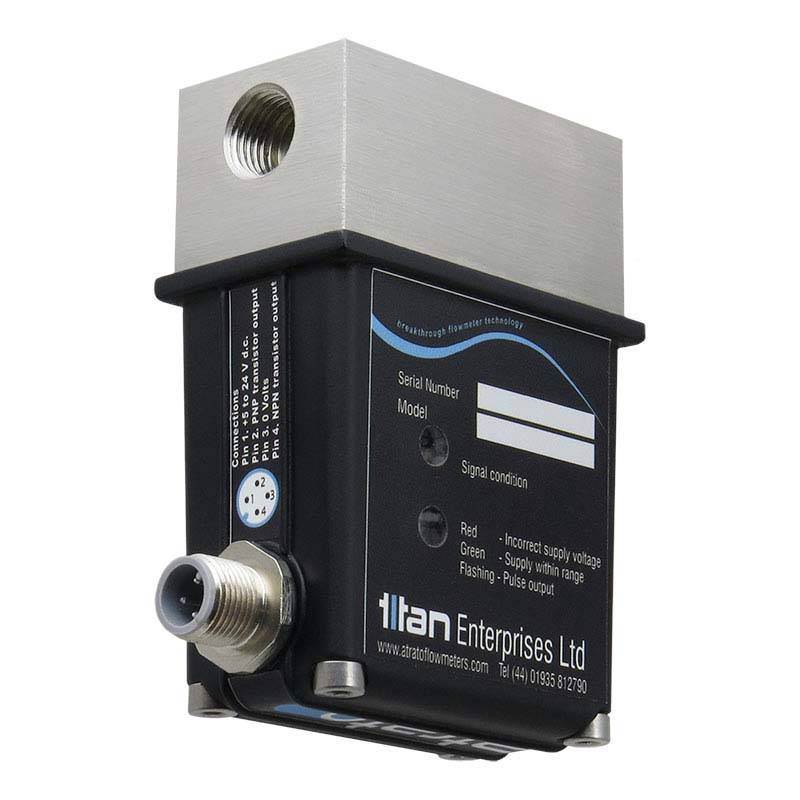

The Titan Process Atrato® Ultrasonic Flow Meter packages Titan’s no-moving-parts ultrasonic technology in a 316 stainless-steel, IP65 industrial design for process monitoring and control. Four low-flow ranges are available with NPN and PNP pulse outputs. Preset K-factors allow meters within the same flow range to be interchanged without individual system recalibration.
Features
- Patented ultrasonic time-of-flight measurement
- No moving parts
- Four flow ranges from 0.002 to 15 L/min
- ±1% of reading from 2–100% of range
- NPN and PNP pulse outputs
- Preset K-factors for simplified interchangeability
- 316 stainless-steel body with PEEK and elastomer wetted components
- IP65 enclosure
Technical Specifications
- Flow ranges: 0.002–0.5, 0.01–1.5, 0.03–5.0, and 0.10–15 L/min
- Pressure rating: 20 bar
- Power: 8–24 VDC
- Process connections: 1/4 in BSPP or 1/4 in NPT female
- Outputs: NPN and PNP pulse
- Operating temperature: -10 to 65°C
- Repeatability: ±0.1% + 0.005% FSD
Typical Applications
- Industrial process monitoring and control
- Instrumentation and laboratory systems
- Chemical dosing
- Pharmaceutical equipment
- Cooling equipment
- Semiconductor processes
- Drink-dispensing equipment
Configuration Options
Configuration options include flow range, seal material, and BSPP or NPT process thread. Confirm wetted-material compatibility with the process liquid before selection.
Need help selecting the right configuration? Send us the liquid, minimum and maximum flow, viscosity, pressure, temperature, and connection requirements.
