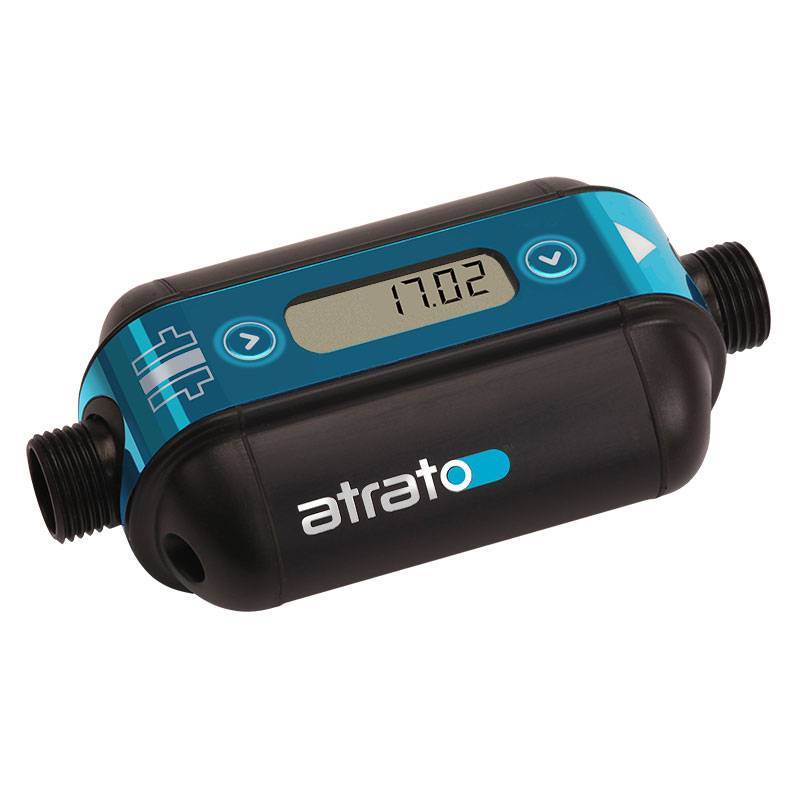

Titan Standard Atrato - 1/2" BSP St Steel - Borosillicate Glass

The Titan Atrato® Inline Ultrasonic Flow Meter uses patented time-of-flight technology to measure low liquid flows with no moving parts. The clean-bore design supports both viscous and non-viscous liquids, while USB connectivity provides configuration, monitoring, and ASCII flow streaming. Configured here with 1/2 in BSPP connection, 316 stainless steel end fitting, and borosilicate glass flow tube.

Features

• No moving parts with straight-through bore
• Four flow ranges spanning 0.002–20 L/min overall
• ±1.0% of reading linearity
• Repeatability: ±0.1% from 25–100% of range; ±0.5% below 25% of range
• NPN and PNP pulse outputs
• Analog-output and display configurations available
• USB interface with ASCII flow streaming
• Reverse-flow capability

Technical Specifications

• Technology: Inline ultrasonic time-of-flight
• Overall flow range: 0.002–20 L/min across four models
• Connection: 1/2 in BSPP
• Pressure options: 10 or 30 bar depending on end fitting
• Power: 9–24 VDC
• Temperature options: Up to 60°C or 110°C depending on sensor configuration
• Outputs: Pulse; analog, display, flow-switch, rate, and total options depend on electronics package
• Selected end-fitting material: 316 stainless steel
• Selected flow-tube material: borosilicate glass

Typical Applications

• High-speed batching
• Laboratory and research equipment
• Cooling systems
• OEM equipment
• Pharmaceutical processes
• Chemical and petrochemical systems
• Flow alarms and data logging

Configuration Options

This product is configured with 1/2 in BSPP connection, 316 stainless steel end fitting, and borosilicate glass flow tube. Select the required flow range, seal material, and electronics package. Confirm pressure, temperature, and wetted-material compatibility for the selected configuration.

Need help selecting the right configuration? Send us the liquid, minimum and maximum flow, viscosity, pressure, temperature, and connection requirements.
